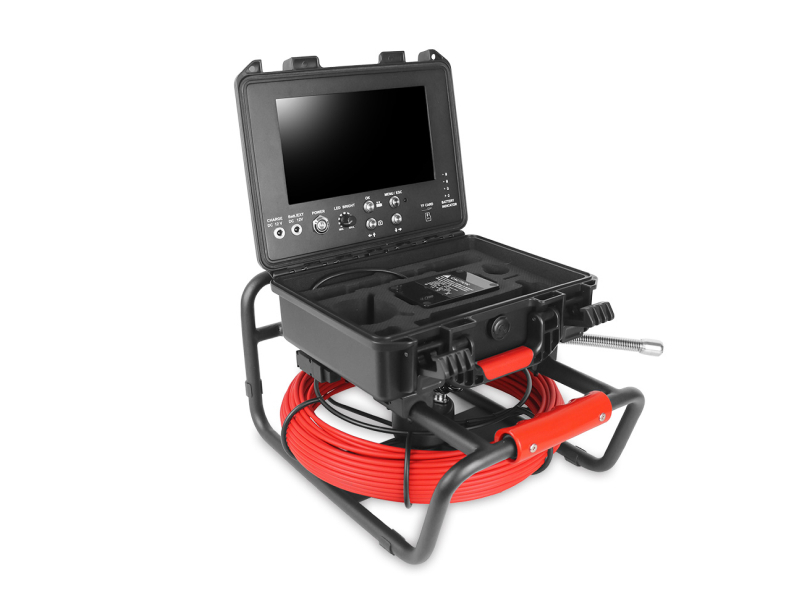

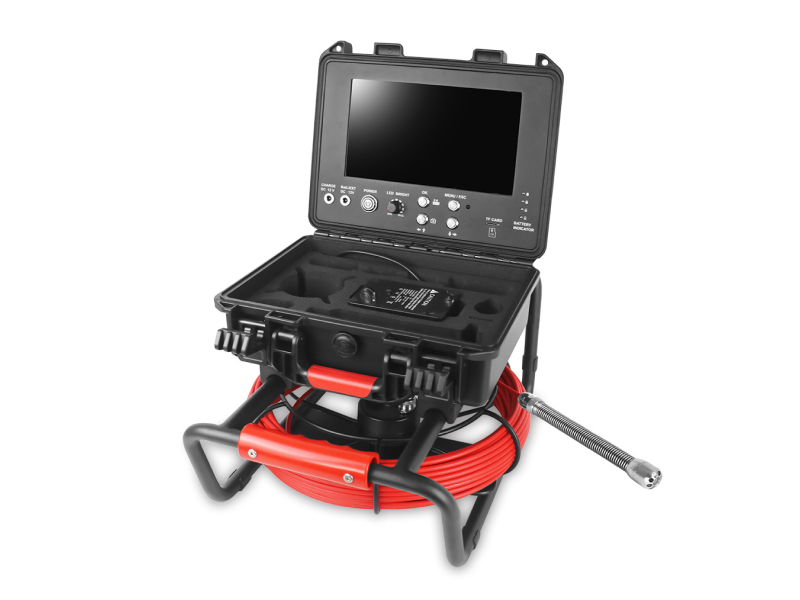

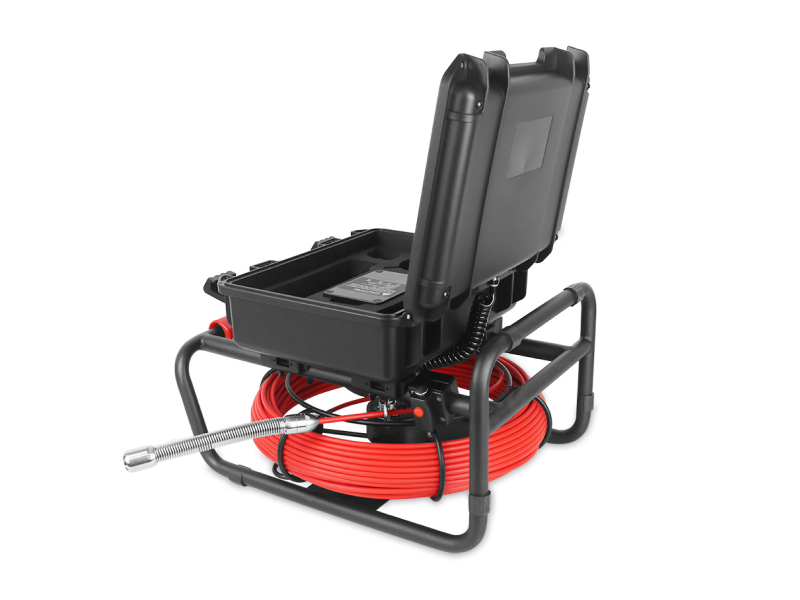

V8-P20P5 AHD 20mm Mini Camera 20m to 50m Fiberglass push rod cable 8inch Portable Pipe Endoscope automotive repair
The 20mm AHD Pipe Inspection Camera System is a compact and powerful tool designed to inspect pipes with a diameter of 20mm. With its high-definition camera and durable construction, it offers clear images and reliable performance for accurate pipe inspections.
Model No. : V8-P20P5
Screen Size : 8inch HD IPS LCD Screen
Camera Size : Φ20 x 26.5mm
Cable Reel : Φ5.2mm 20m-50m Fiberglass push rod cable
Power Supply : Built in 6800mA li-ion battery inside
product detail
The 20mm AHD Pipe Inspection Camera System is a versatile and durable solution for inspecting pipes and finding potential issues such as leaks or blockages. Whether you are a plumber, contractor, or maintenance technician, this camera system provides clear and detailed visuals of hard-to-reach areas within pipes to help you diagnose and solve problems efficiently. With its advanced AHD technology, this compact camera is an essential tool for maintaining the integrity of plumbing systems in various industries.
______

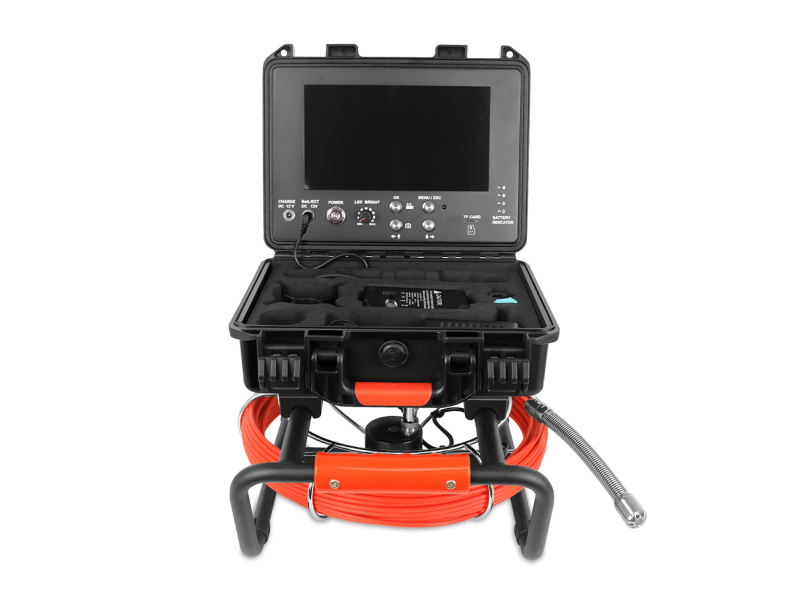

Overview of 20mm Sewer Camera
| 8 inch IPS lcd screen, 1920X1080 resolution |
| DVR control box with audio ,video recording and photography function |
| Built in 6800mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
| All-in-One Design ,Easy to Carry, Easy to use |
______

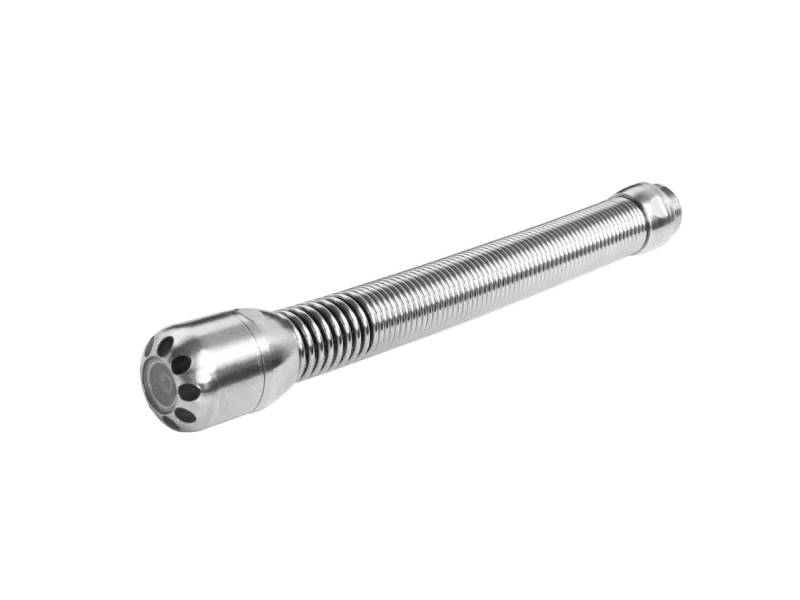

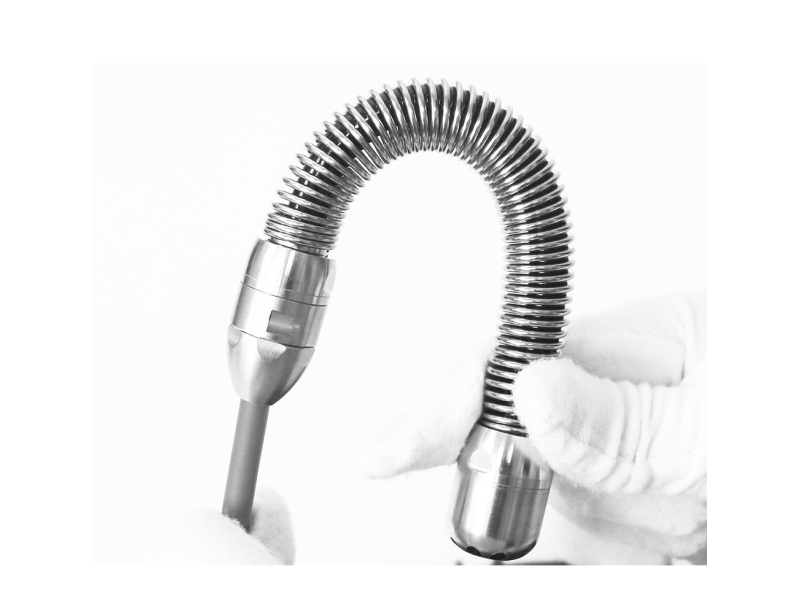

Main Part 1: 23mm camera head
| Camera size | Φ20mmx 26.5mm (160mm) |
| Camera pixel | Sensor 1/3″ CMOS, 2.0MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 90° |
| Light | 9pcs high light LED lighting adjustable |
| Connector | Detachable with pins type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
______
Main Part 2: DVR control unit
| Screen Size | 8″HD IPS LCD Screen, 1280X720 resolution |
| Waterproof level | IP68 |
| Function | 1080P format video, auido and photography function DVR |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 6800mA rechargeable Li-ion Battery Pack |
| Battery level indicator |
______

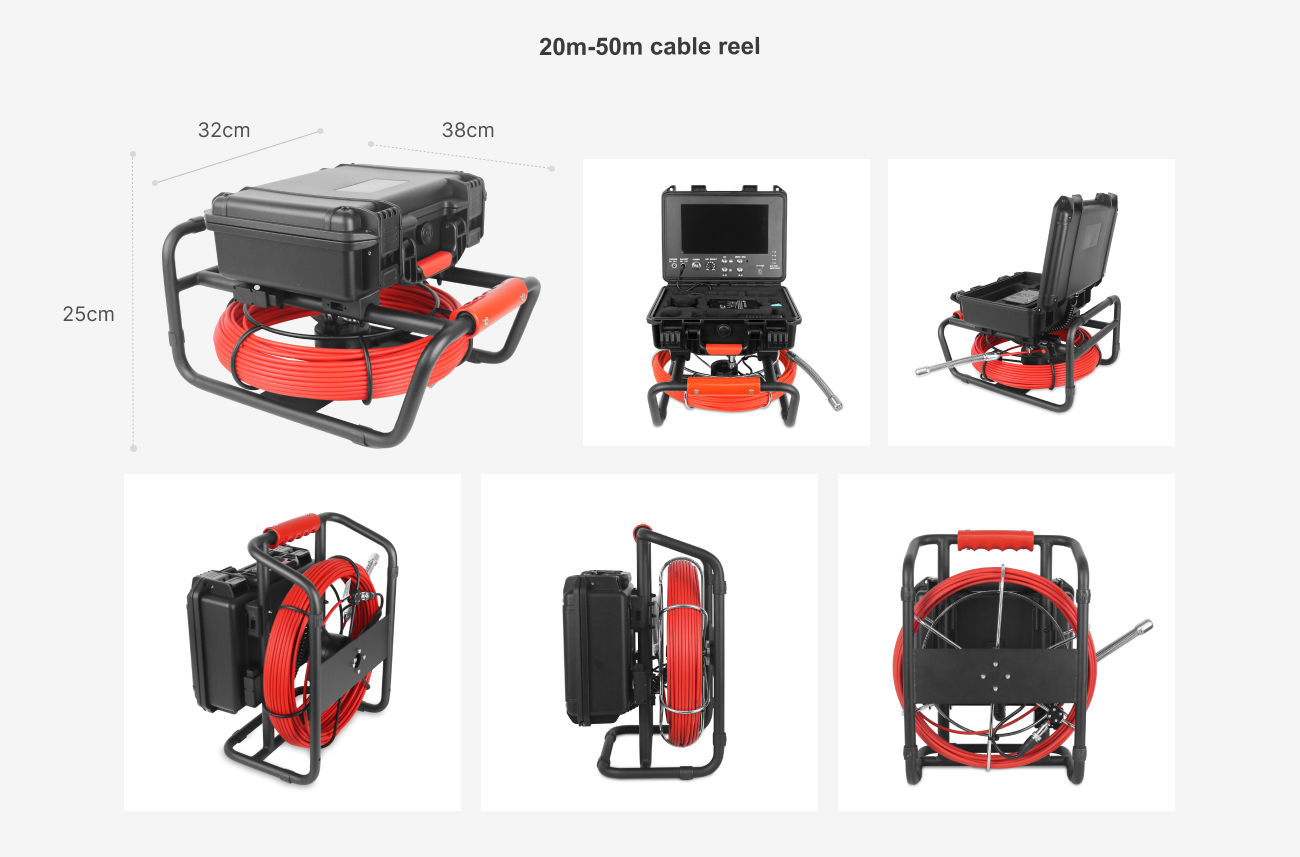

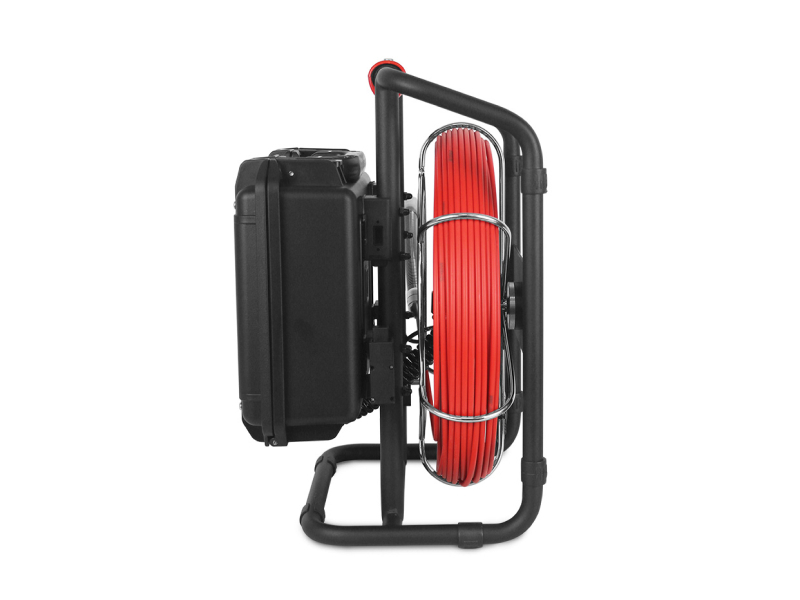

Main Part 3: Cable reel
| Meter counter | Digital meter counter |
| Material | Fiberglass push rod cable |
| Cable diameter | Φ5.2mm |
| Cable length | 20m-50m |
______
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
Frequently Asked Questions
1、 Who are we?
We are the professional suppliers of sewer drain pipe inspection cameras.
2、 How can we guarantee quality?
We have 100% test before delivery and all products have at least 48 hours Aging Testing to make sure good quality.
3、 What can you buy from us?
Pipe inspection camera,Under water Inspection camera,Endoscope inspection camera,CCTV video inspection camera.
