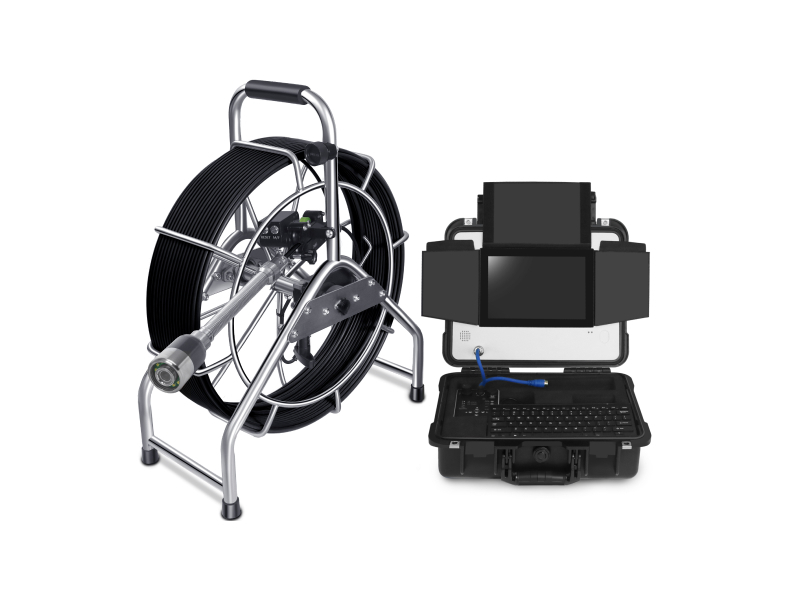

The AHD 40mm Self-leveling 60m Pipe Sewer Camera System is a high-quality and versatile tool for inspecting pipes, sewers, and other hard-to-reach areas. With a 40mm camera head and self-leveling capabilities, it can navigate through tight spaces and provide clear, high-resolution images. This system is ideal for plumbers, contractors, and maintenance workers who need to quickly and accurately diagnose issues in underground piping systems.

______

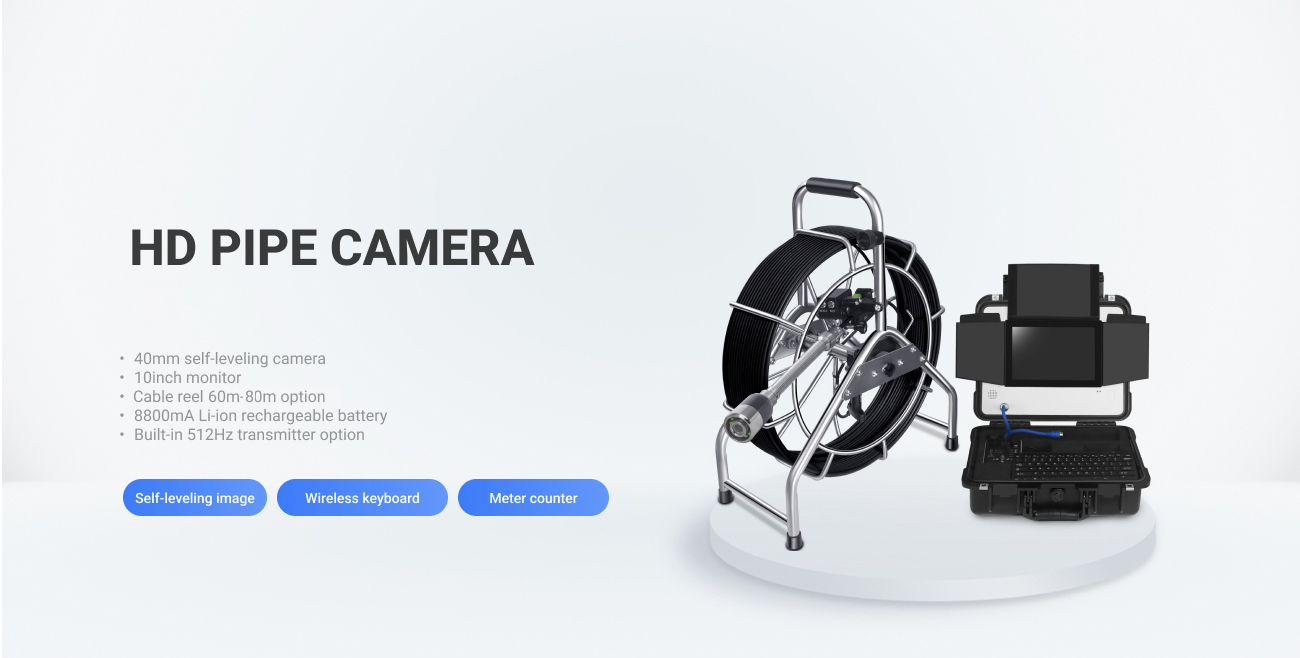

Overview of 40mm self-leveling Camera

Self-leveling image  no matter what angle the camera is at, the image is always upwards.

1/3 CMOS, 1.3MP pilex FHD , waterproof IP68

Waterproof IP68

10 inch IPS lcd screen

DVR control box with audio ,video recording and photography function

USB wireless keyboard to typewrite the words

Built in 8800mA li-ion battery inside

Digital meter counter function, error is less than 1%

______

Main Part 1: 40mm self-leveling camera head

Camera size	Ø40mm x 77mm
Camera pixel	Sensor 1/3″ CMOS, 1.3MP pixel
Waterproof level	Waterproof IP68
Camera range	View range 120°
Light	12pcs high light LED lighting adjustable
Connector	Detachable with aviation plug type connection to Cable Reel
Material	Lens window sapphire glass & stainless steel

______

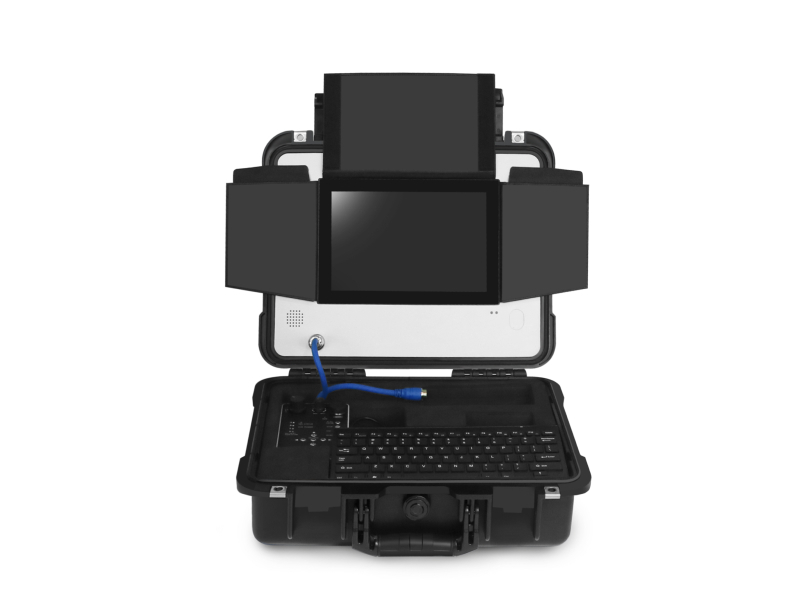

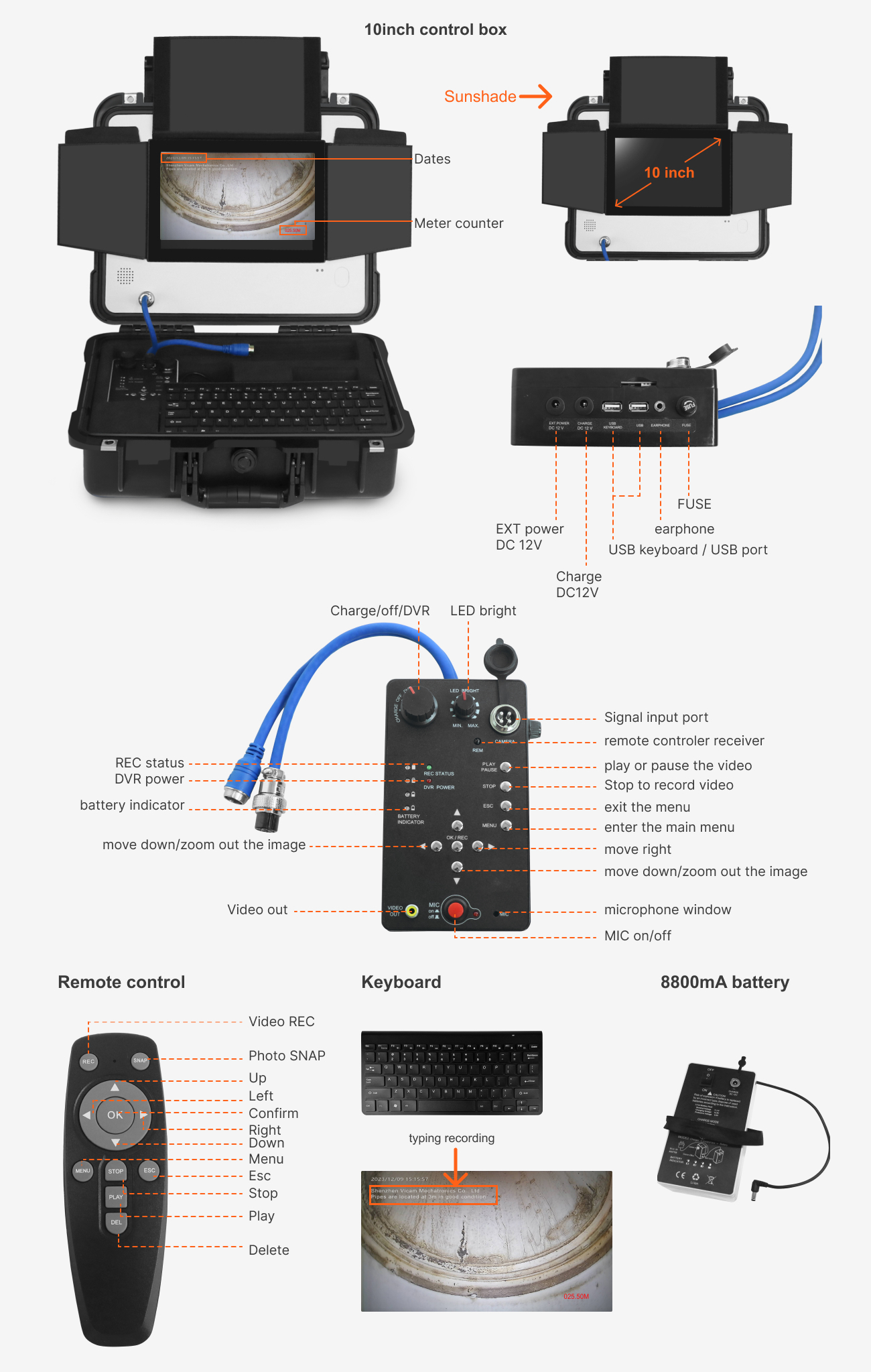

Main Part 2: DVR control unit

Screen Size	10″HD IPS LCD Screen
Waterproof level	Waterproof keys & waterproof panel
Function	Video, auido and photography function DVR
Keyboard	USB wireless Keyboard real time typewriting
Meter counter	Digital meter counter function, display on the screen
Battery	8800mA rechargeable Li-ion Battery Pack
	Battery level indicator

______

Main Part 3: Cable reel

Meter counter	Digital meter counter
Material	Fiberglass push rod cable
Cable diameter	Ø7mm
Cable length	60m-80m
Reel size	51 x 25 x 64cm

______

Applications

Detect and identify pipe damage:

  Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.

  Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.

Underground pipeline detection:

   Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.

   Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines

---
