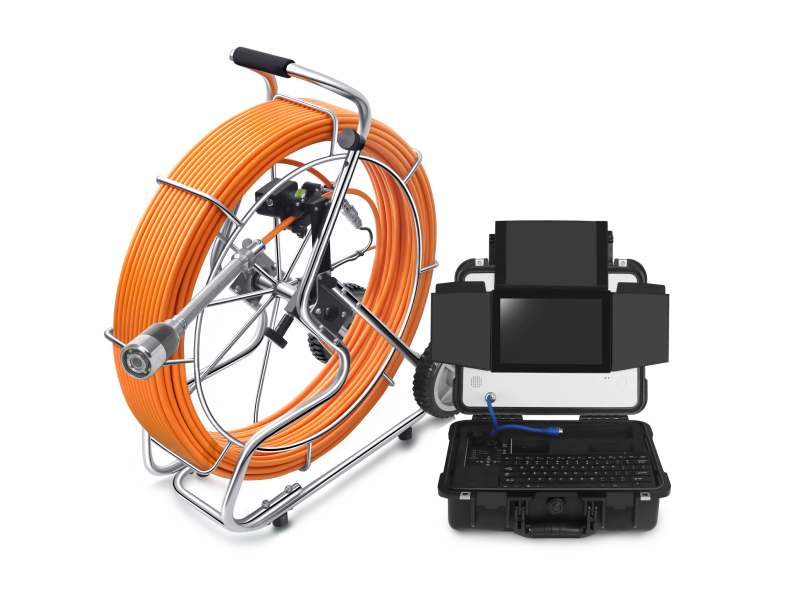

The 40mm Self-leveling AHD 60m-150m Pipe Camera System is a versatile tool for inspecting and surveying pipes of various sizes and materials. With its self-leveling feature, users can easily navigate through curved and challenging pipes, capturing high-definition images and videos along the way. Whether it’s for plumbing, construction, or maintenance purposes, this camera system is an invaluable asset for professionals in the industry.

______

Overview of 40mm self-leveling Camera

Self-leveling image  no matter what angle the camera is at, the image is always upwards.

1/3 CMOS, 1.3MP pilex FHD , waterproof IP68

Waterproof IP68

10 inch IPS lcd screen

DVR control box with audio ,video recording and photography function

USB wireless keyboard to typewrite the words

Built in 8800mA li-ion battery inside

Digital meter counter function, error is less than 1%

______

Main Part 1: 40mm self-leveling camera head

Camera size	Ø40mm x 77mm
Camera pixel	Sensor 1/3″ CMOS, 1.3MP pixel
Waterproof level	Waterproof IP68
Camera range	View range 120°
Light	12pcs high light LED lighting adjustable
Connector	Detachable with aviation plug type connection to Cable Reel
Material	Lens window sapphire glass & stainless steel

______

Main Part 2: DVR control unit

Screen Size	10″HD IPS LCD Screen
Waterproof level	Waterproof keys & waterproof panel
Function	Video, auido and photography function DVR
Keyboard	USB wireless Keyboard real time typewriting
Meter counter	Digital meter counter function, display on the screen
Battery	8800mA rechargeable Li-ion Battery Pack
	Battery level indicator

______

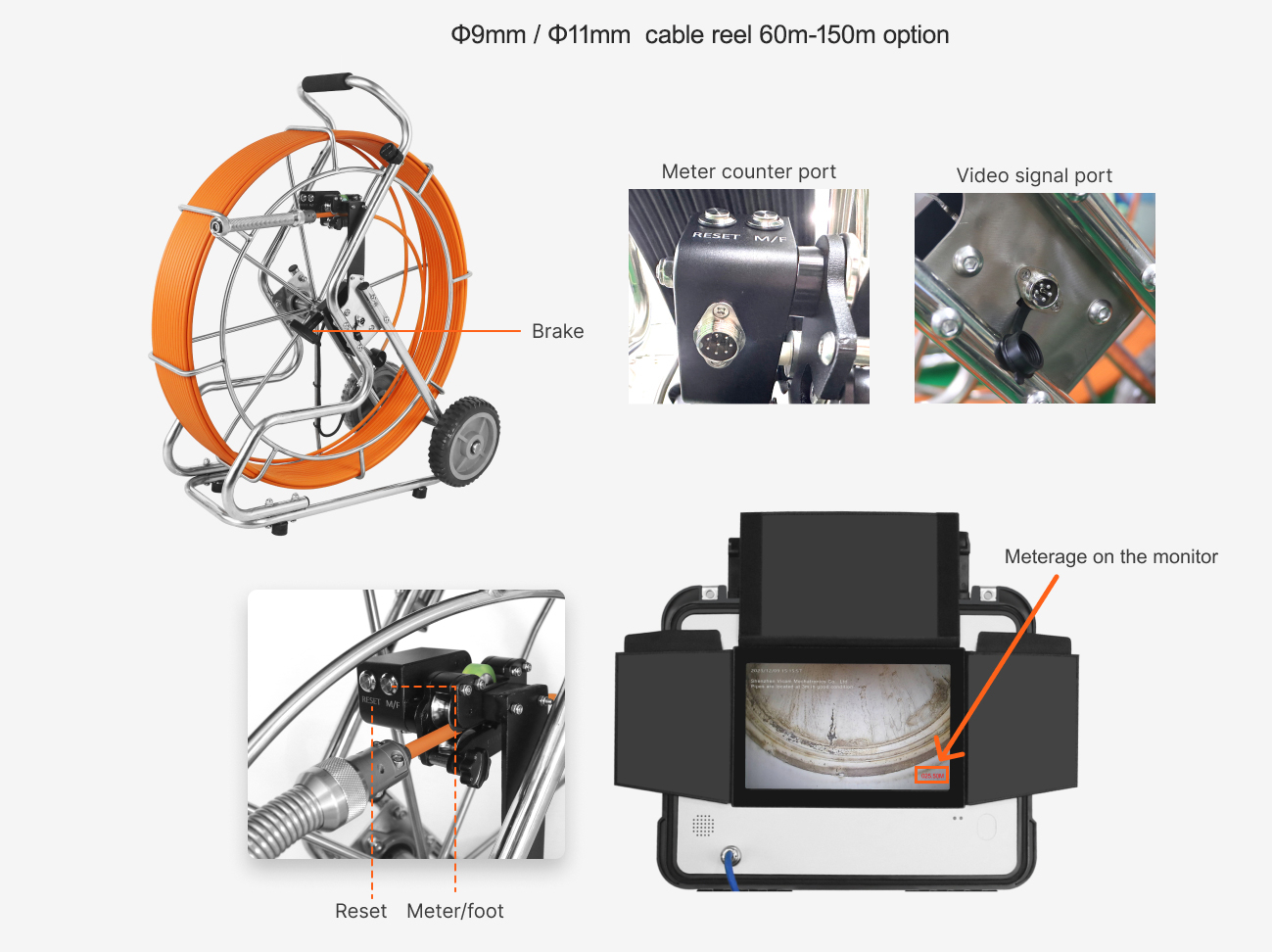

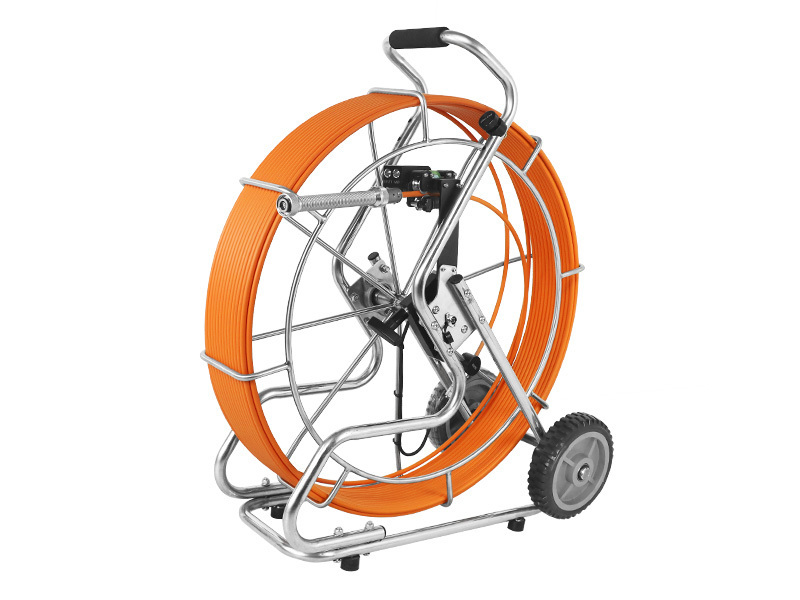

Main Part 3: Cable reel

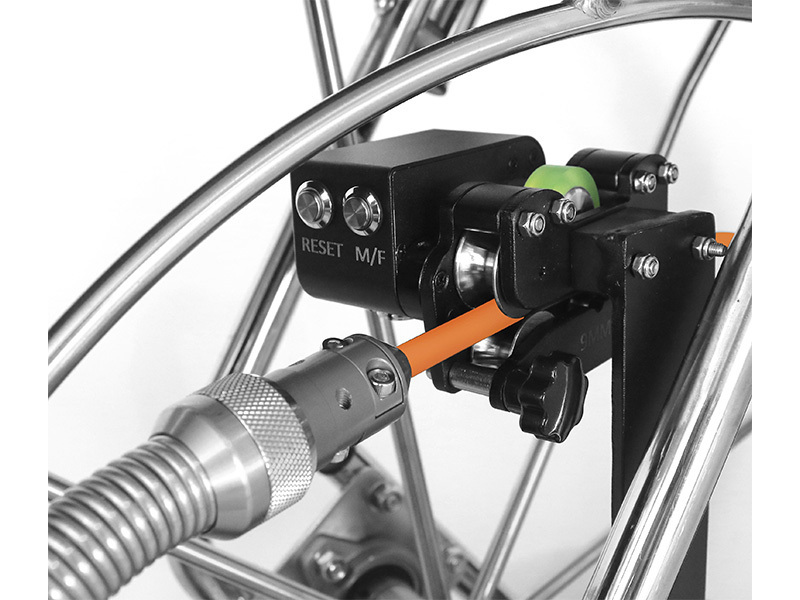

Meter counter	Digital meter counter
Material	Fiberglass push rod cable
Cable diameter	Ø9mm or Ø11mm
Cable length	60m-150m
Reel size	70 x 28 x 84cm

______

Applications

Detect and identify pipe damage:

  Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.

  Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.

Underground pipeline detection:

   Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.

   Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines

---
