The 29mm AHD 10inch waterproof Inspection Camera is perfect for industrial professionals who need to inspect pipes, walls, and other hard-to-reach areas. With its high-definition camera and waterproof design, this tool is ideal for plumbing, construction, and maintenance tasks. Its 10-inch length allows users to easily maneuver the camera and capture detailed images and videos for thorough inspections.

______

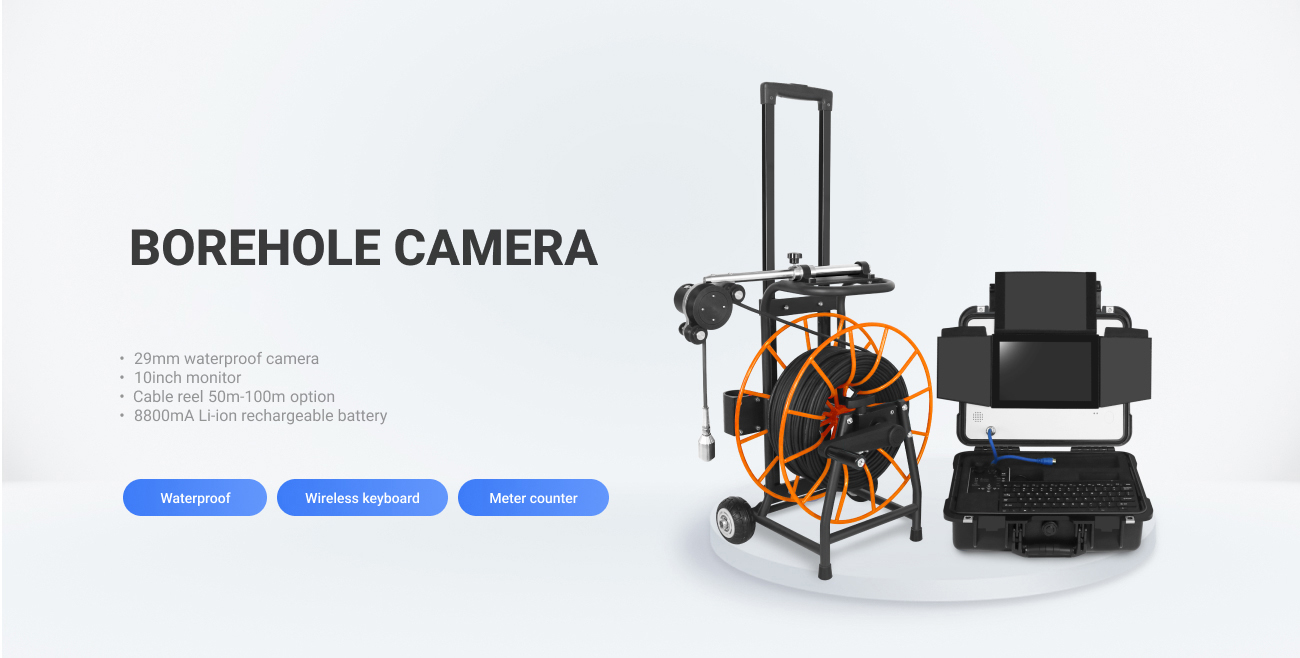

Overview of 29mm underwater Camera

29mm AHD camera head, sensor 1/3″ CMOS ,1.3MP pixel

Φ6.8mm x 100m flexible cable with depth counter function

32G USB flash storage device

Video/audio recording & still image capture

720P vidoe and AVI format

8800mA li-ion battery pack

Keyboard for real time typewriting

10 inch HD color monitor

______

Main Part 1: 29mm waterproof camera head

Camera size	Ø29mm x 53mm
Camera pixel	Sensor 1/3″ CMOS, 1.3MP pixel
Waterproof level	Waterproof IP68
Camera range	View range 120°
Light	12pcs high light LED lighting adjustable
Connector	Detachable with pins type connection to Cable Reel
Material	Lens window sapphire glass & stainless steel

______

Main Part 2: DVR control unit

Screen Size	10″HD IPS LCD Screen
Waterproof level	Waterproof keys & waterproof panel
Function	Video, auido and photography function DVR
Keyboard	USB wireless Keyboard real time typewriting
Meter counter	Digital meter counter function, display on the screen
Battery	8800mA rechargeable Li-ion Battery Pack
	Battery level indicator

______

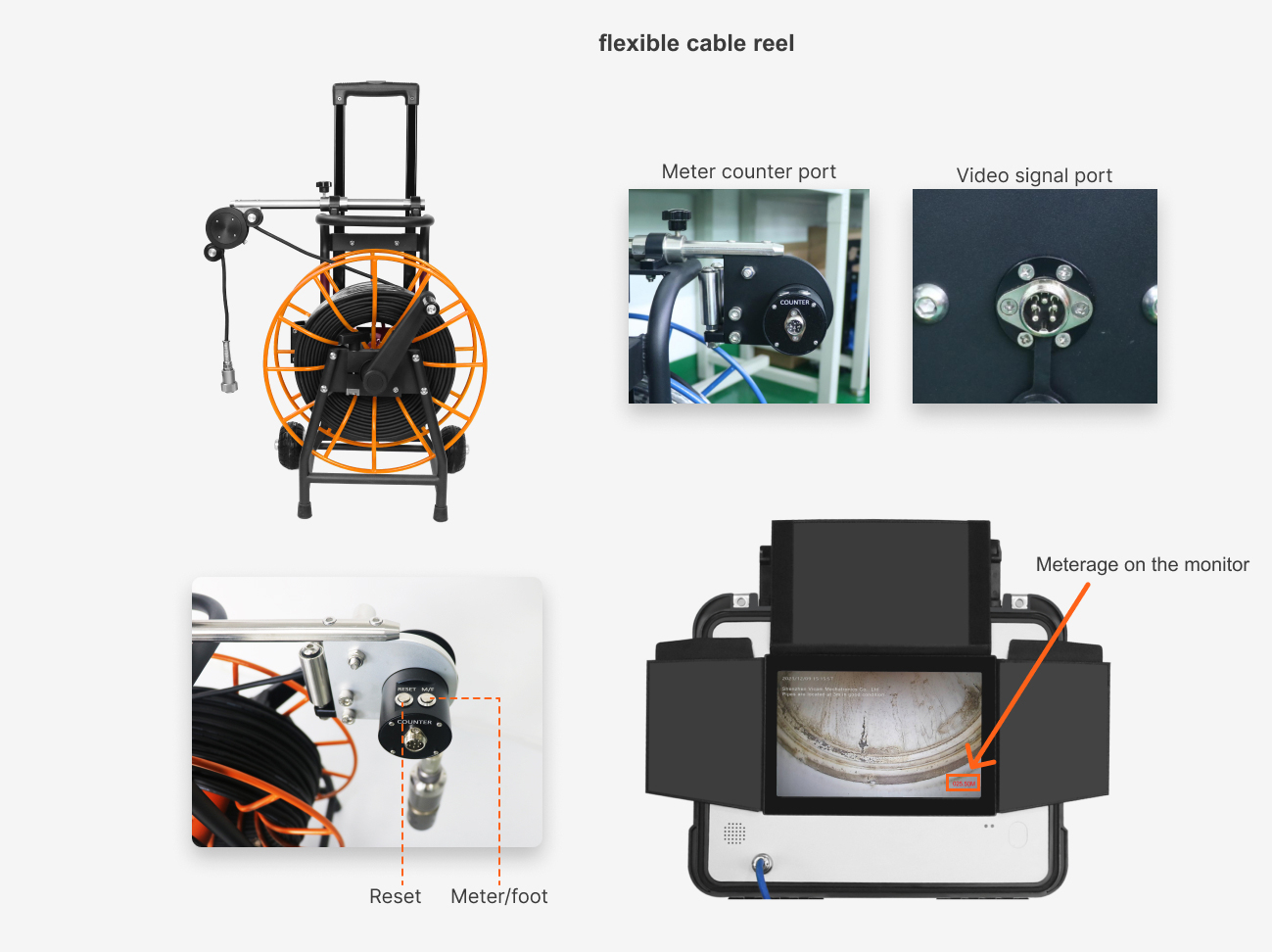

Main Part 3: Cable reel

Meter counter	Digital meter counter
Material	Oxygen free copper flexible cable
Cable diameter	Ø6.8mm
Cable length	50m-100m
Reel size	40 x 35 x 60cm

______

Applications

Detect and identify pipe damage:

  Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.

  Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.

Underground pipeline detection:

   Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.

   Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines

---
