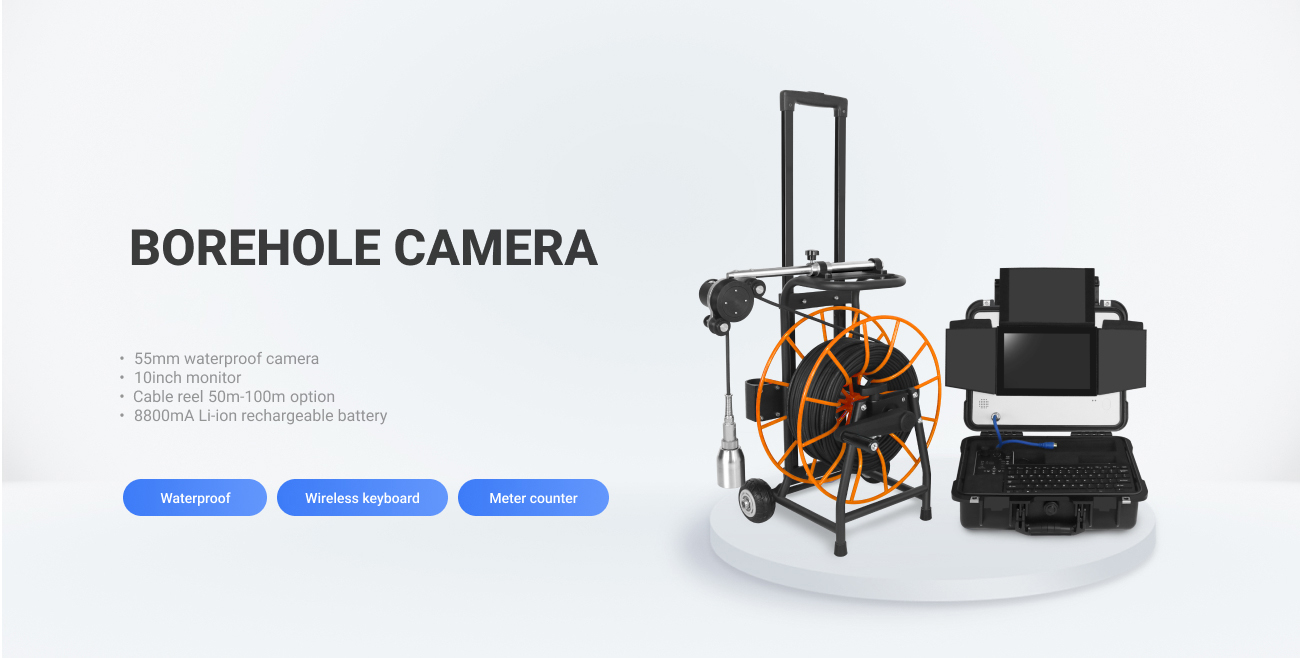

The 55mm AHD 100m 10inch Down View Waterproof Borehole Inspection Camera is a high-quality, durable camera designed for inspecting boreholes and other underwater environments. It boasts advanced AHD technology for clear, high-resolution imaging and a waterproof design that allows for deep water inspection up to 100 meters. Its 10-inch display provides clear viewing and easy navigation, making it a valuable tool for professionals in fields such as geology, water management, and engineering.

______

Overview of 55mm underwater Camera

55mm AHD camera head, sensor 1/3″ CMOS ,1.3MP pixel

Φ6.8mm x 100m flexible cable with depth counter function

32G USB flash storage device

Video/audio recording & still image capture

720P vidoe and AVI format

8800mA li-ion battery pack

Keyboard for real time typewriting

10 inch HD color monitor

______

Main Part 1: 55mm waterproof camera head

Camera size	Ø55mm x 75mm
Camera pixel	Sensor 1/3″ CMOS, 1.3MP pixel
Waterproof level	Waterproof IP68
Camera range	View range 120°
Light	8pcs high light LED lighting adjustable
Connector	Detachable with aviation plug type connection to Cable Reel
Material	Lens window sapphire glass & stainless steel

______

Main Part 2: DVR control unit

Screen Size	10″HD IPS LCD Screen
Waterproof level	Waterproof keys & waterproof panel
Function	Video, auido and photography function DVR
Keyboard	USB wireless Keyboard real time typewriting
Meter counter	Digital meter counter function, display on the screen
Battery	8800mA rechargeable Li-ion Battery Pack
	Battery level indicator

______

Main Part 3: Cable reel

Meter counter	Digital meter counter
Material	Oxygen free copper flexible cable
Cable diameter	Ø6.8mm
Cable length	50m-100m
Reel size	40 x 35 x 60cm

______

Applications

Detect and identify pipe damage:

  Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.

  Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.

Underground pipeline detection:

   Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.

   Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines

---
