This 50mm Pan Tilt AHD camera offers the ability to rotate 360 degrees, allowing for versatile and comprehensive surveillance coverage. With a manual focus push pipe, this camera can be adjusted to capture precise details within a range of 60m-150m.

______

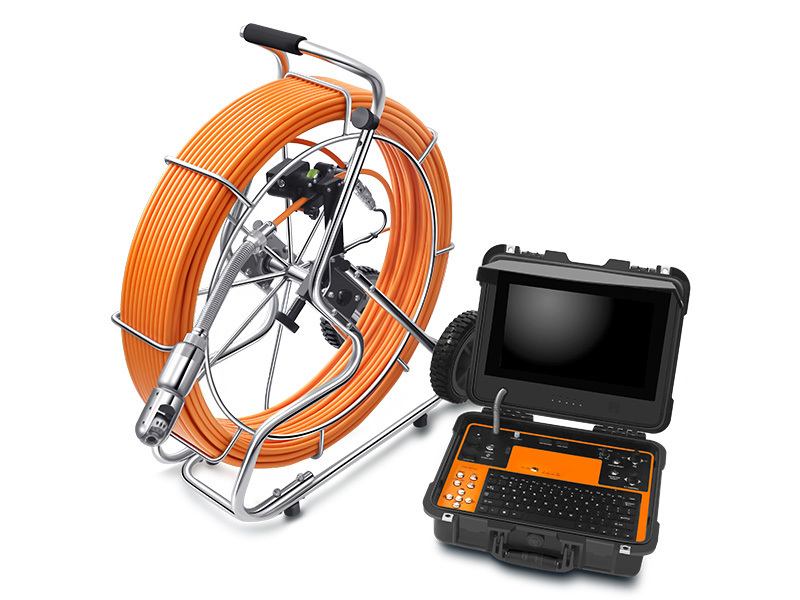

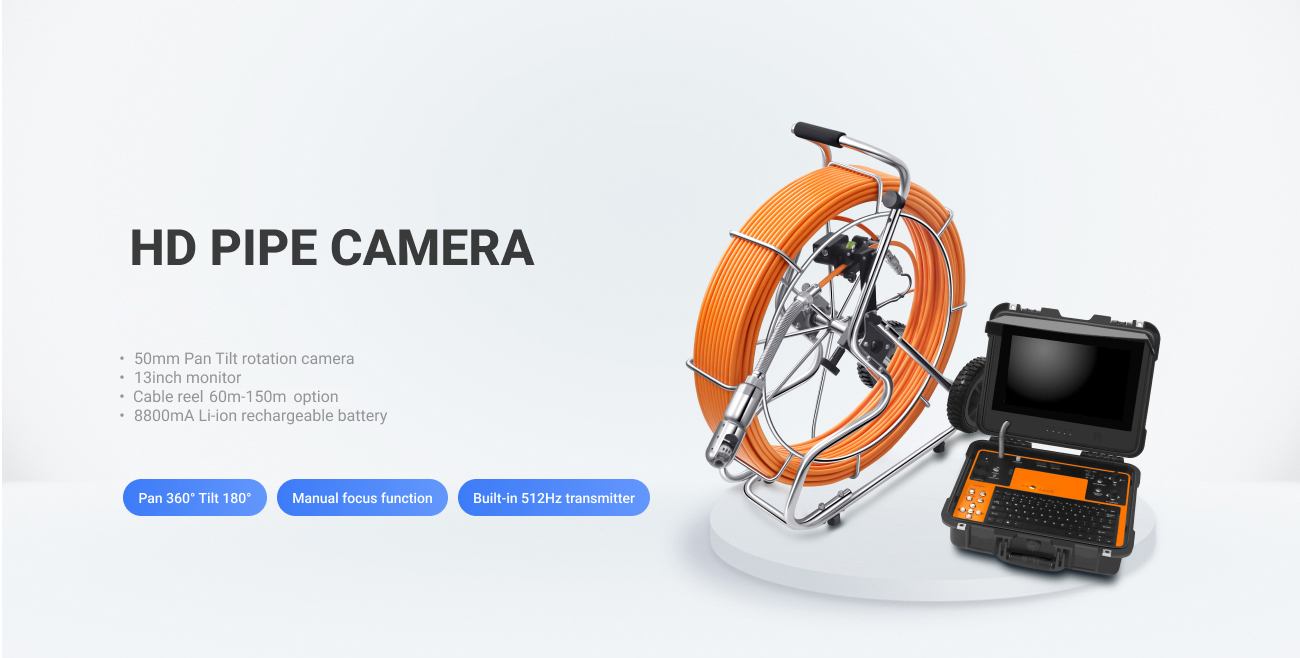

Overview of 50mm Pan Tilt Sewer Camera

360° rotation AHD Camera Head, Pan 360° Tilt 180°

1/3 CMOS,2.0MP pilex FHD , waterproof IP68

Adjustable focus function

13 inch IPS lcd screen

DVR control box with audio ,video recording and photography function

USB wireless keyboard to typewrite the words

Built in 8800mA li-ion battery inside

Digital meter counter function, error is less than 1%

______

Main Part 1: 50mm Pan Tilt rotation camera head

Camera size	Ø50mm x 154mm
Camera pixel	Sensor 1/3″ CMOS, 1.3MP pixel
Waterproof level	Waterproof IP68
Camera range	View range 120°
Focusing	Manual focus manually
Rotation range	Rotation: Pan 360°， Tilt 180°
Light	6pcs high light LED lighting adjustable
Connector	Detachable with aviation plug type connection to Cable Reel
Material	Lens window sapphire glass & stainless steel

______

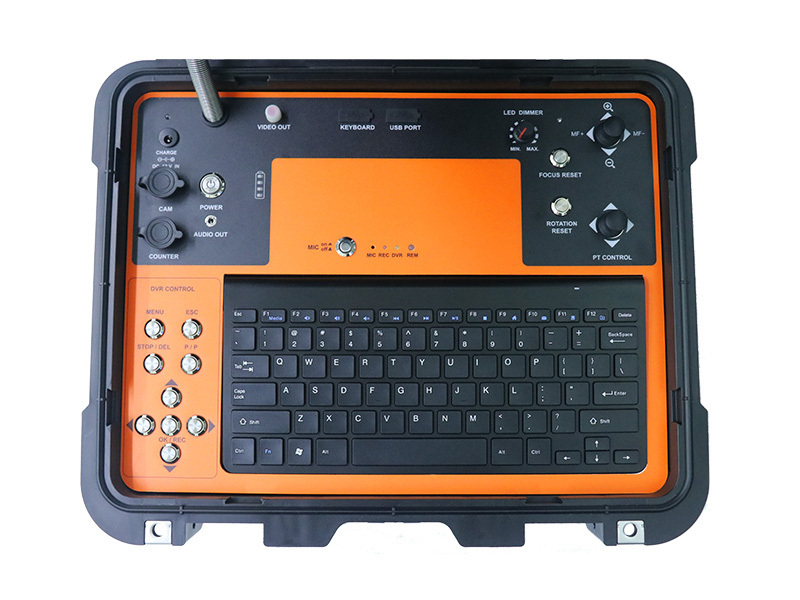

Main Part 2: DVR control unit

Screen Size	13″HD IPS LCD Screen, 1280X720 resolution
Waterproof level	Waterproof keys & waterproof panel
Function	Video, auido and photography function DVR
Keyboard	USB wireless Keyboard real time typewriting
Meter counter	Digital meter counter function, display on the screen
Battery	8800mA rechargeable Li-ion Battery Pack
	Battery level indicator

______

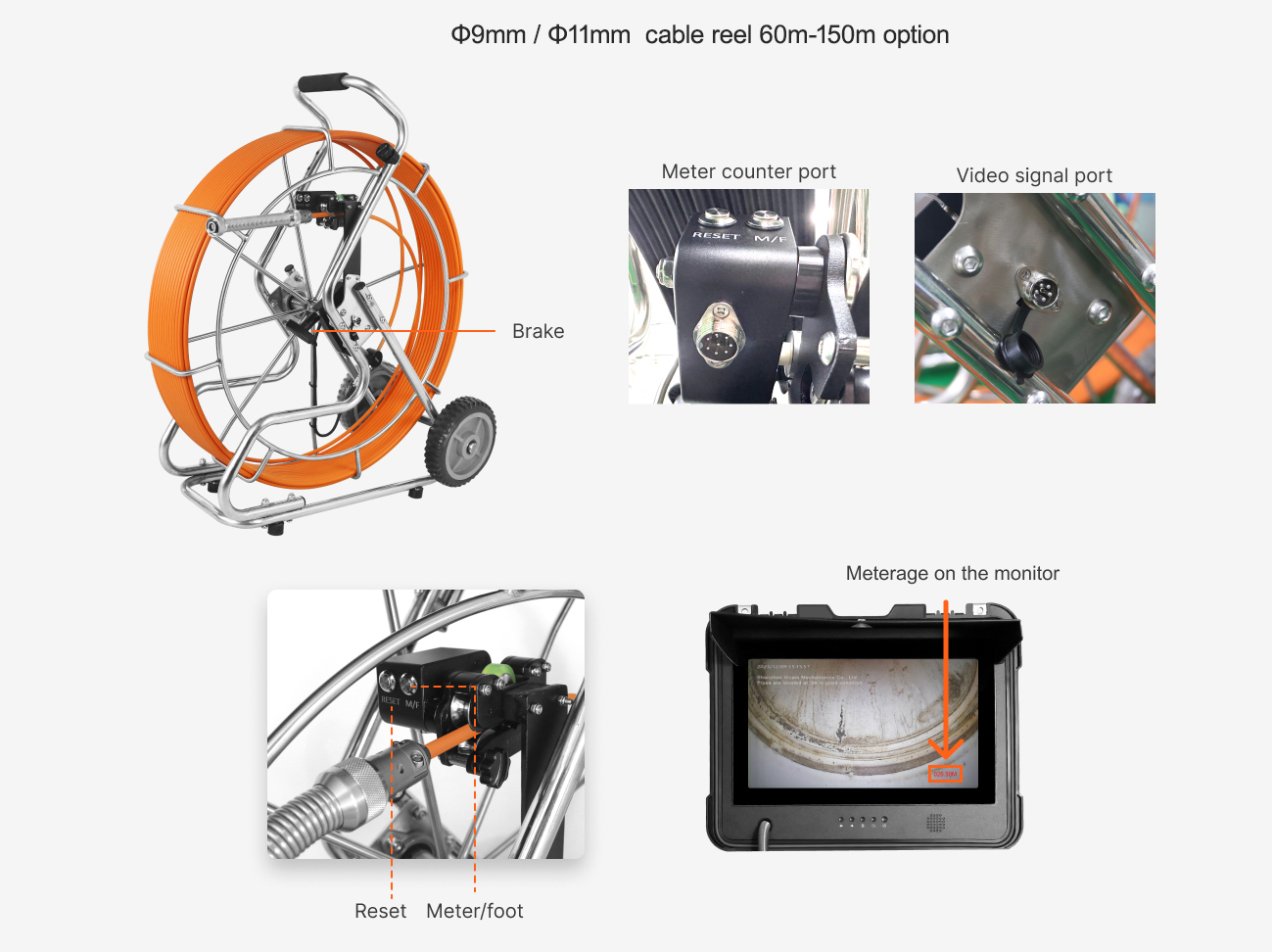

Main Part 3: Cable reel

Meter counter	Digital meter counter
Material	Fiberglass push rod cable
Cable diameter	Ø9mm or Ø11mm
Cable length	60m-150m
Reel size	70x 28 x 84cm

______

Applications

Detect and identify pipe damage:

  Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.

  Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.

Underground pipeline detection:

   Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.

   Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines

---
