V13-U45EW2 Underwater 45mm Camera 100m to 200m soft cable with electrical winch pipeline inspection ship hull checks
The 45mm dual rotation electric cable reel underwater camera features side and down rotation capabilities, providing versatile and comprehensive underwater surveillance. With its high-quality imaging and durable construction, it is the ideal solution for underwater inspection and exploration.
Model No. : V13-U45EW2
Screen Size : 13 inch HD IPS LCD Screen
Camera Size : Ø45mm x 506mm
Cable Reel : Ø8mm 100m to 200m with electrical winch
Power Supply : 8800mA Li-ion rechargeable battery,AC110V to 240V for electrical winch
product detail

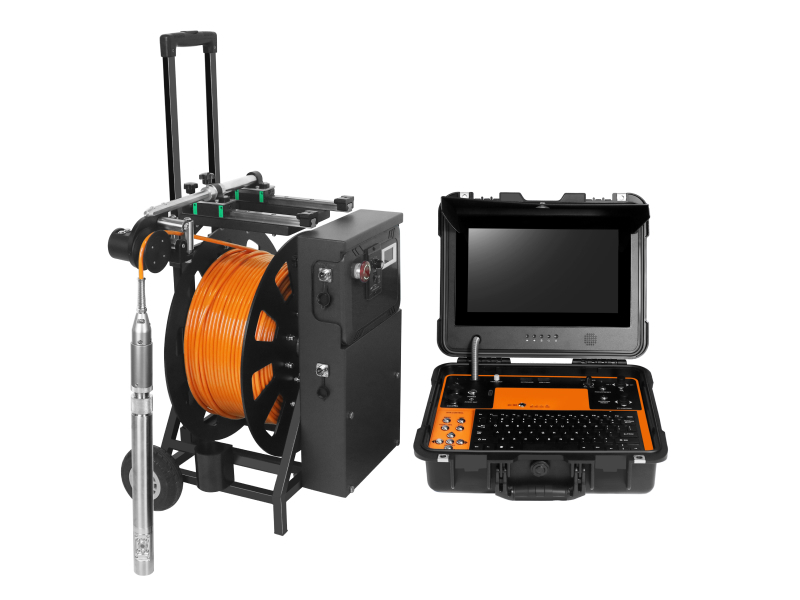

Introducing the 45mm dual rotation electric cable reel underwater camera, designed specifically for underwater inspection and surveillance. With its side and down rotation capabilities, this camera provides unparalleled visibility and maneuverability for underwater exploration tasks, such as pipeline inspection, ship hull checks, and harbor monitoring. The high-quality imaging and versatile rotation options make this camera an essential tool for any professional underwater inspection and surveillance needs.
______
Overview of 45mm dual (side/down) underwater Camera
| Dia 45mm dual (side/down) camera |
| 1/3 CMOS,2.0MP pilex AHD , waterproof IP68 |
| Adjustable focus function |
| 13 inch IPS lcd screen |
| DVR control box with audio ,video recording and photography function |
| USB wireless keyboard to typewrite the words |
| Built in 8800mA li-ion battery inside |
| Digital meter counter function, error is less than 1% |
______

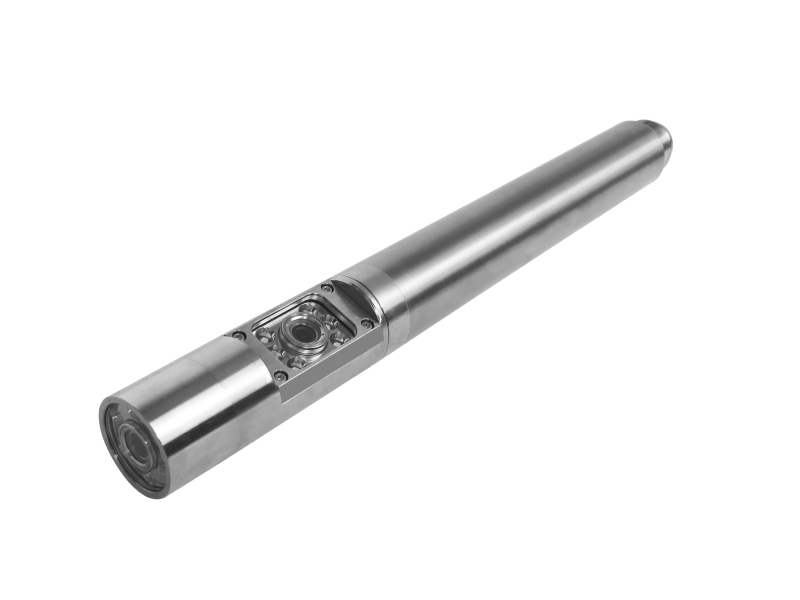

Main Part 1: 45mm dual (side/down) rotation waterproof camera head
| Camera size | Ø45mm x 506mm |
| Camera pixel | Sensor 1/3″ CMOS, 1.3MP pixel |
| Waterproof level | Waterproof IP68 |
| Camera range | View range 120° |
| Focusing | Manual focus for side camera |
| Rotation range | Rotation: Pan 360°， Tilt 180° |
| Light | 6pcs high light LED lighting adjustable (side & down camera) |
| Connector | Detachable with aviation plug type connection to Cable Reel |
| Material | Lens window sapphire glass & stainless steel |
______
Main Part 2: DVR control unit
| Screen Size | 13″HD IPS LCD Screen, 1280X720 resolution |
| Waterproof level | Waterproof keys & waterproof panel |
| Function | Video, auido and photography function DVR |
| Keyboard | USB wireless Keyboard real time typewriting |
| Meter counter | Digital meter counter function, display on the screen |
| Battery | 8800mA rechargeable Li-ion Battery Pack |
| Battery level indicator | |
| Joystick | Joystick for camera rotation and focus manually |
______

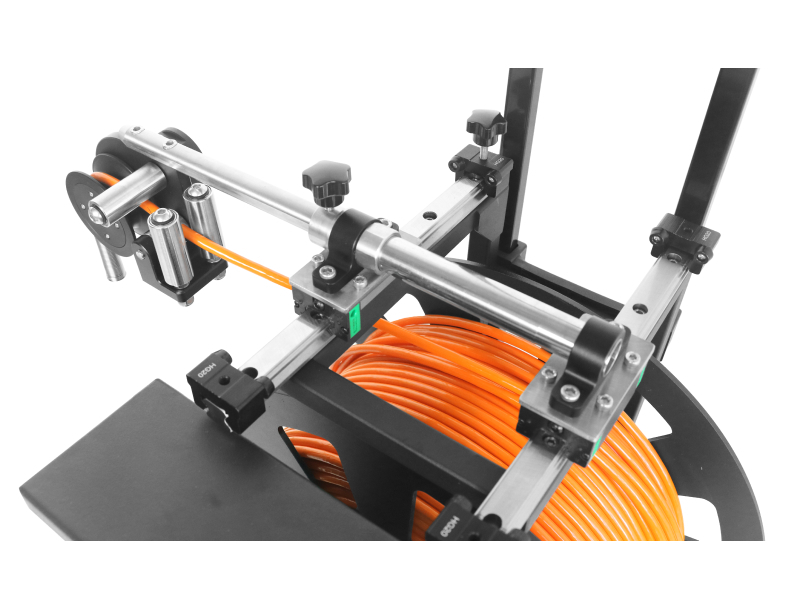

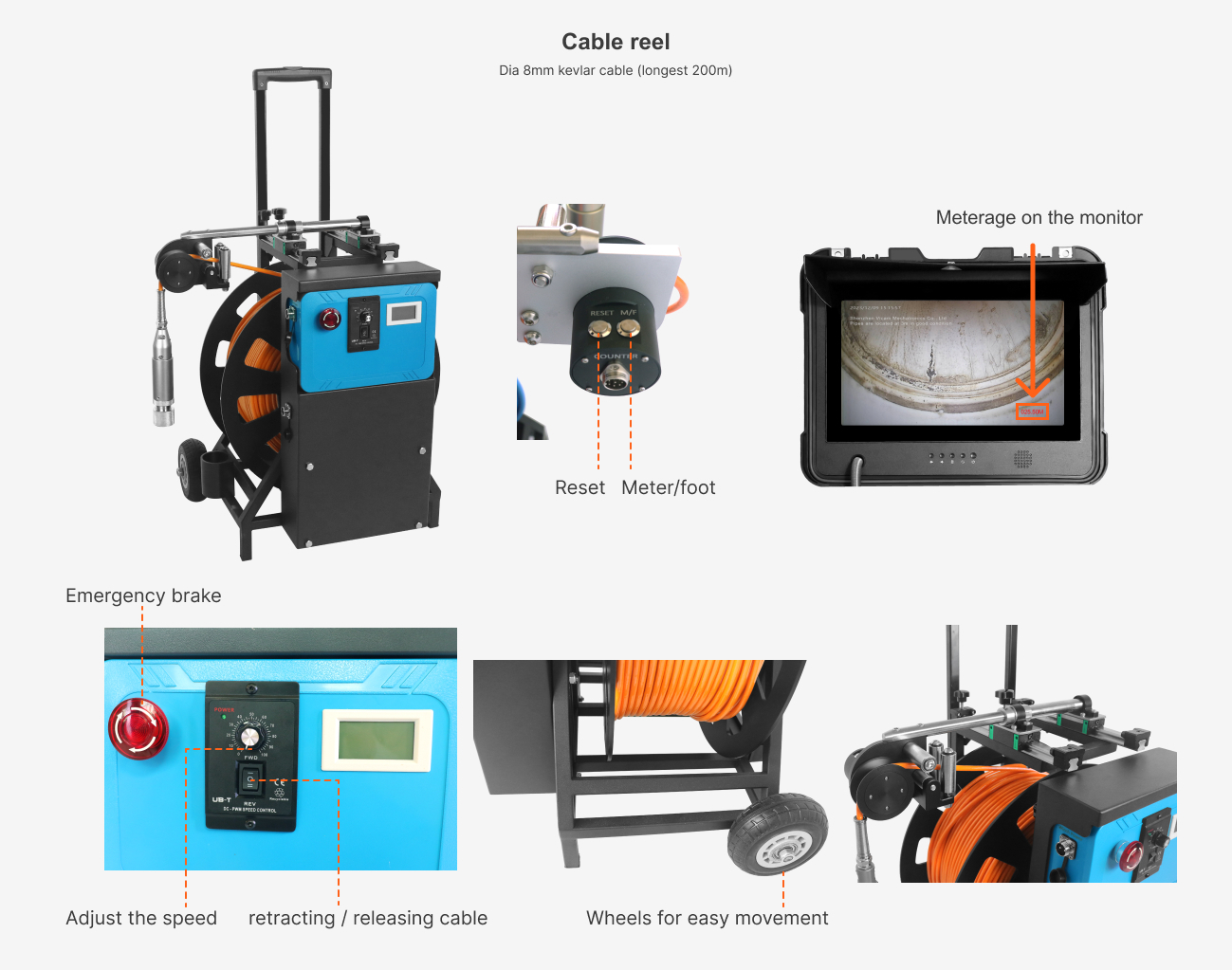

Main Part 3: Cable reel
| Meter counter | Digital meter counter |
| Material | Oxygen free copper flexible cable |
| Cable diameter | Ø8mm |
| Cable length | 100m-200m |
| Electric winding | Adjustable speed |
______
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
Frequently Asked Questions
1、 Who are we?
We are the professional suppliers of sewer drain pipe inspection cameras.
2、 How can we guarantee quality?
We have 100% test before delivery and all products have at least 48 hours Aging Testing to make sure good quality.
3、 What can you buy from us?
Pipe inspection camera,Under water Inspection camera,Endoscope inspection camera,CCTV video inspection camera.
