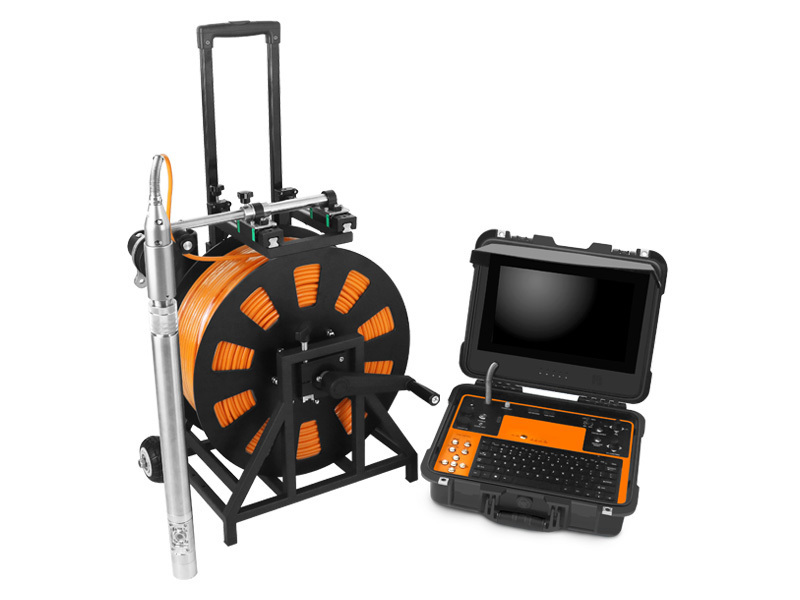

Our 45mm AHD 300m Deep Well Camera with manual reel is designed for professionals in the water well industry. With its 360-degree view capabilities, it allows users to inspect and monitor well conditions thoroughly, ensuring the safety and efficiency of the well system. Whether for routine maintenance, troubleshooting, or well construction, this high-quality camera provides clear and comprehensive visibility, making it an essential tool for any well service provider.

______

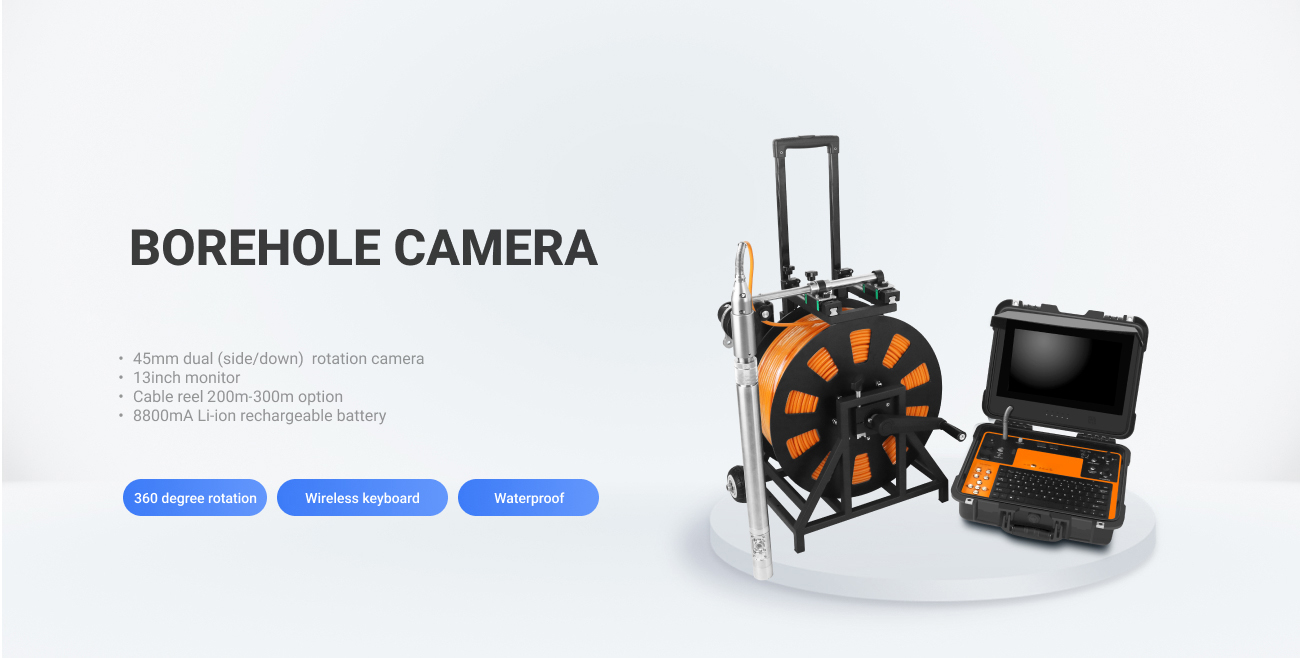

Overview of 45mm dual rotation underwater Camera

Dia 45mm dual (side/down) camera

1/3 CMOS,2.0MP pilex AHD , waterproof IP68

Adjustable focus function

13 inch IPS lcd screen

DVR control box with audio ,video recording and photography function

USB wireless keyboard to typewrite the words

Built in 8800mA li-ion battery inside

Digital meter counter function, error is less than 1%

______

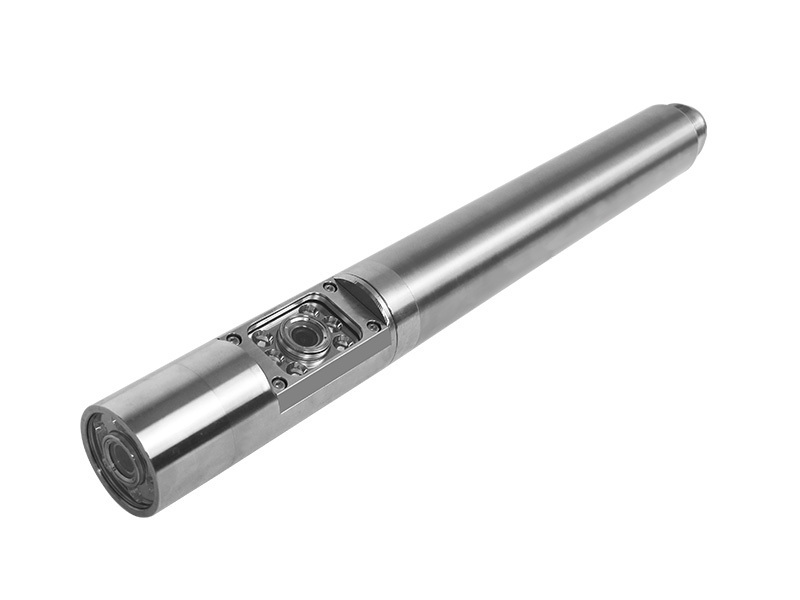

Main Part 1: 45mm dual (side/down) rotation waterproof camera head

Camera size	Ø45mm x 506mm
Camera pixel	Sensor 1/3″ CMOS, 1.3MP pixel
Waterproof level	Waterproof IP68
Camera range	View range 120°
Focusing	Manual focus for side camera
Rotation range	Rotation: Pan 360°， Tilt 180°
Light	6pcs high light LED lighting adjustable (side & down camera)
Connector	Detachable with aviation plug type connection to Cable Reel
Material	Lens window sapphire glass & stainless steel

______

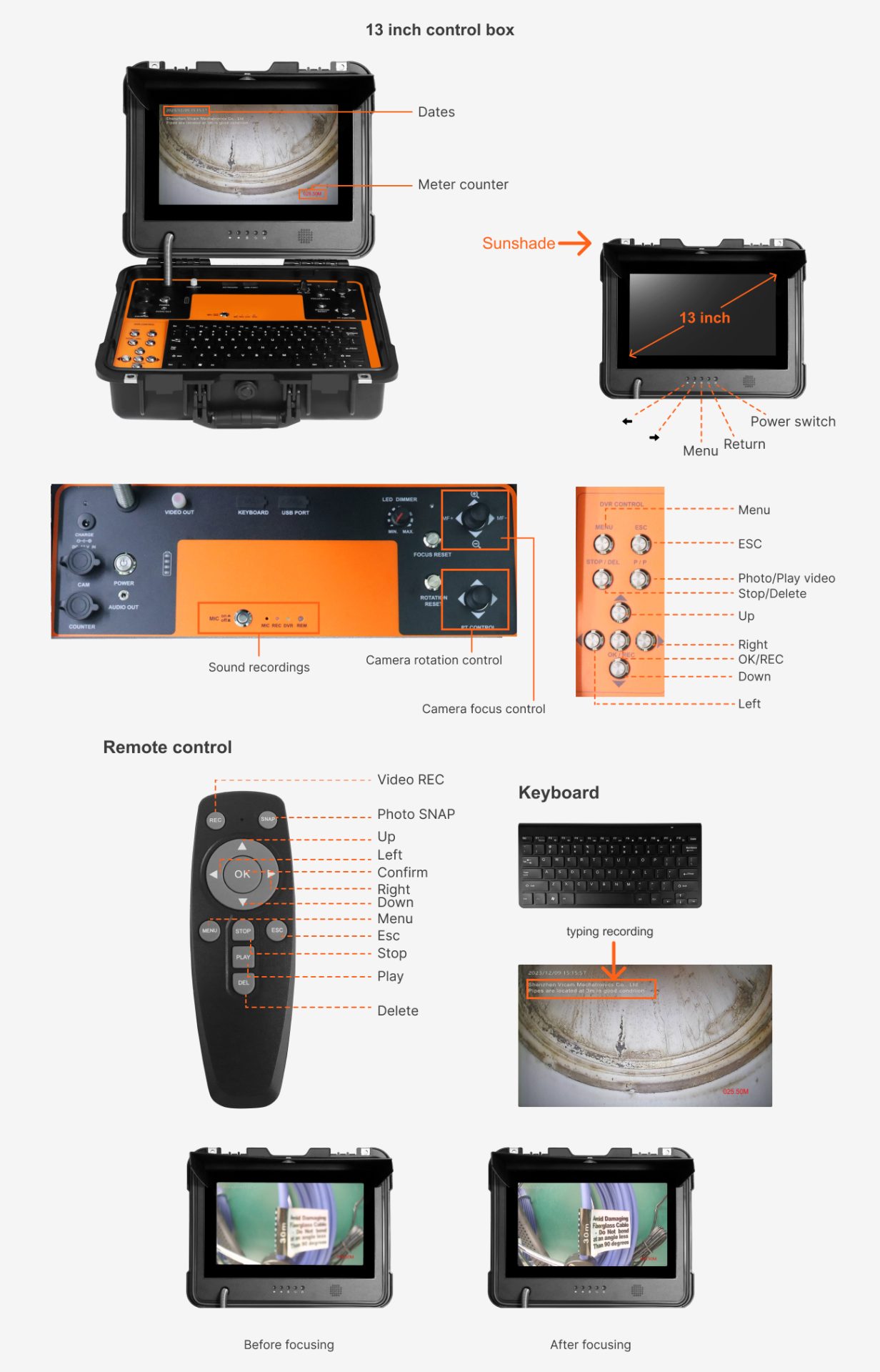

Main Part 2: DVR control unit

Screen Size	13″HD IPS LCD Screen, 1280X720 resolution
Waterproof level	Waterproof keys & waterproof panel
Function	Video, auido and photography function DVR
Keyboard	USB wireless Keyboard real time typewriting
Meter counter	Digital meter counter function, display on the screen
Battery	8800mA rechargeable Li-ion Battery Pack
	Battery level indicator
Joystick	Joystick for camera rotation and focus manually

______

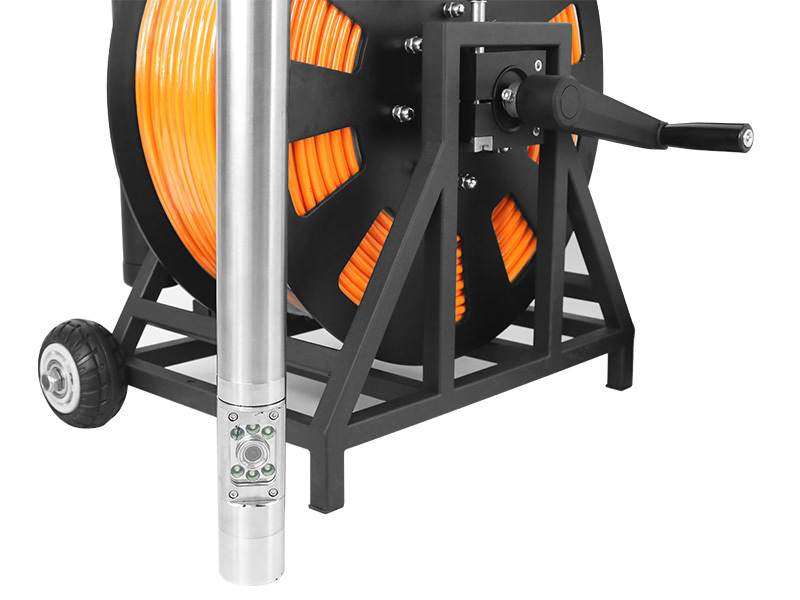

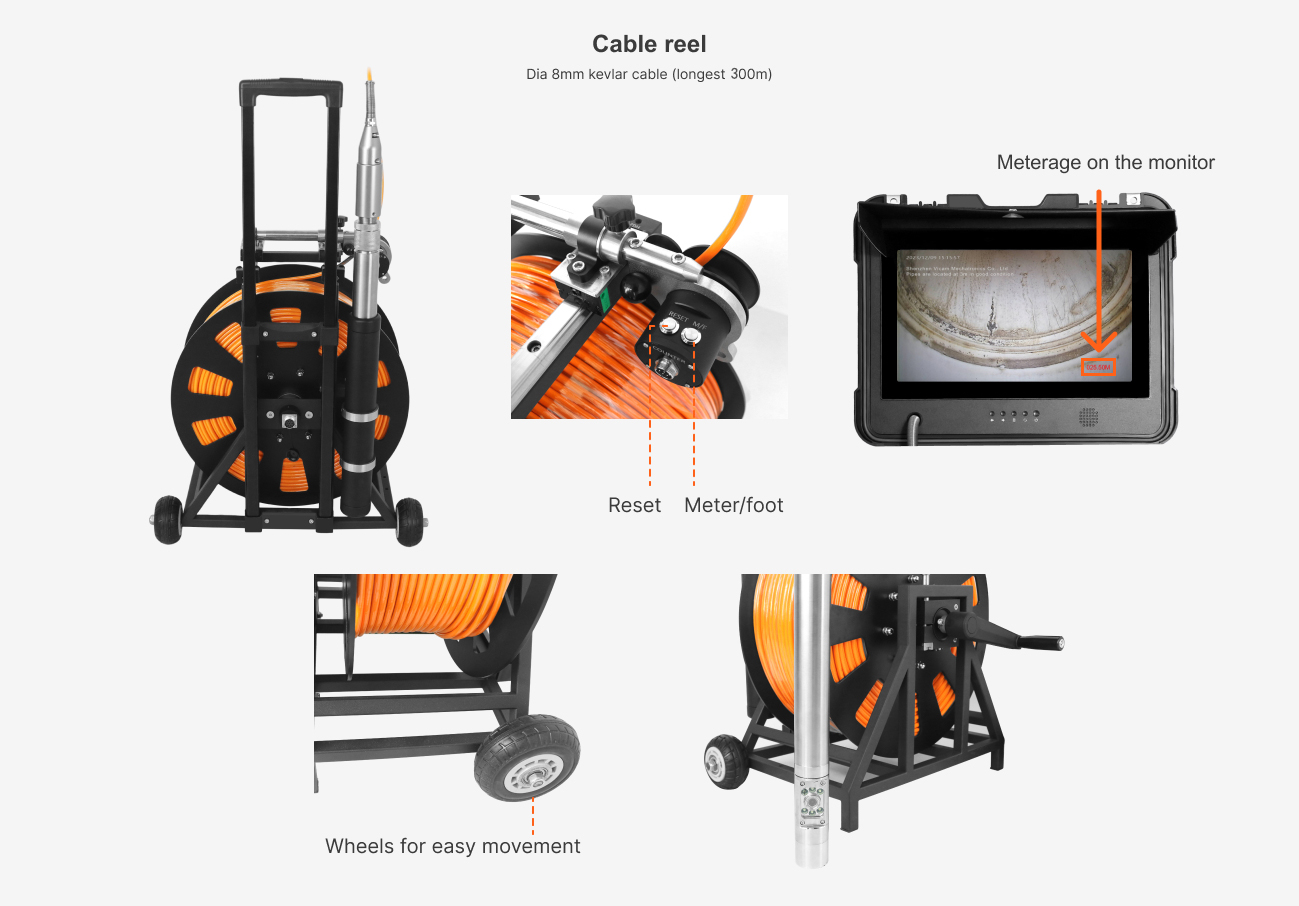

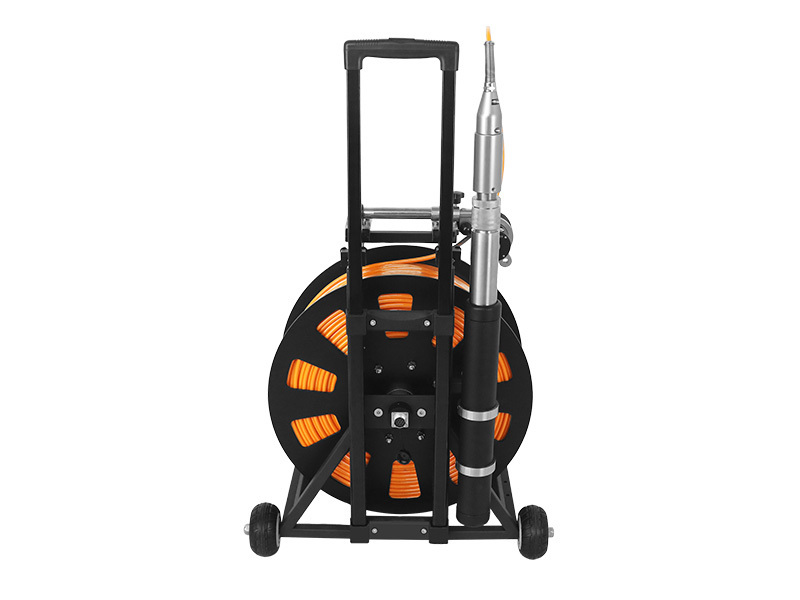

Main Part 3: Cable reel

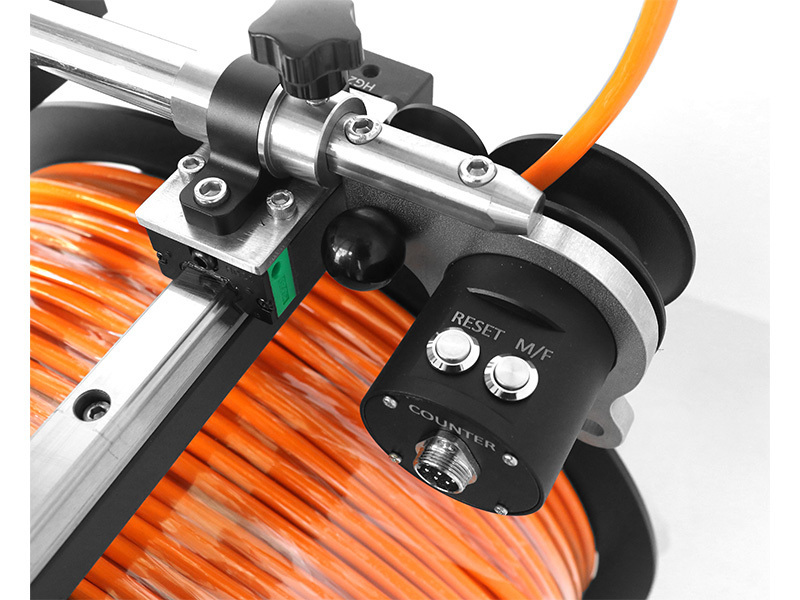

Meter counter	Digital meter counter
Material	Oxygen free copper flexible cable
Cable diameter	Ø8mm
Cable length	200m-300m
Electric winding	Adjustable speed

______

Applications

Detect and identify pipe damage:

  Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.

  Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.

Underground pipeline detection:

   Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.

   Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines

---
