Introducing our 20mm Super mini HD pipe inspection camera, designed for professionals in plumbing, construction, and maintenance industries. With its compact size and high-definition imaging capabilities, this camera is perfect for inspecting narrow pipes and hard-to-reach areas with precision and clarity. Whether you’re diagnosing plumbing issues, conducting routine maintenance, or inspecting construction projects, this portable and powerful tool will enhance your productivity and accuracy.

______

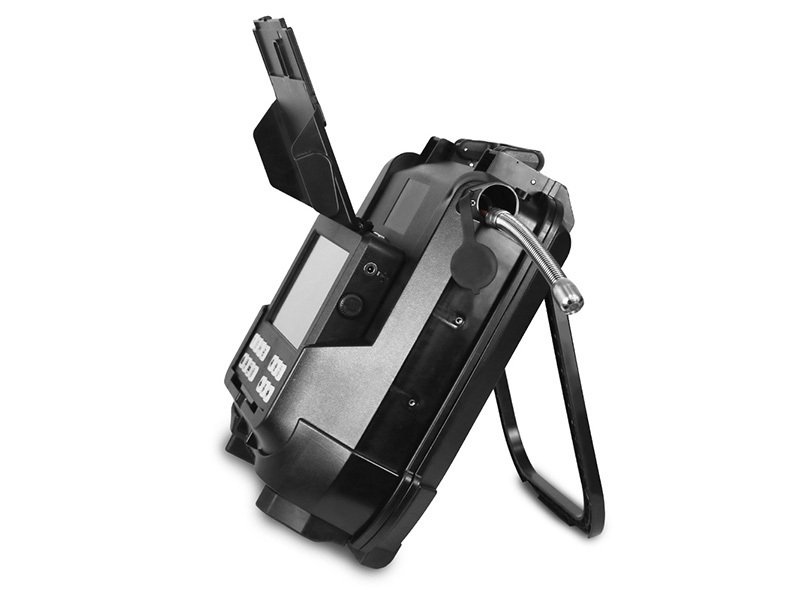

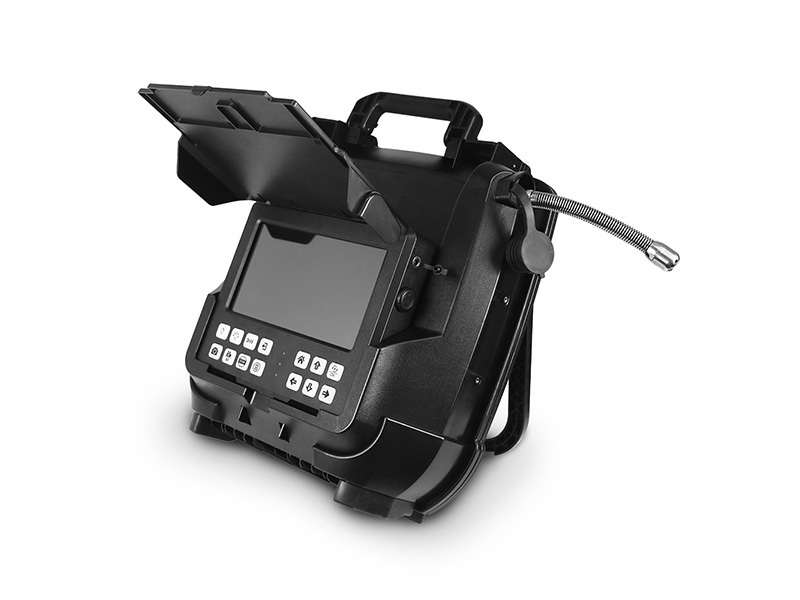

Overview of 20mm Sewer Camera

8 inch IPS lcd screen, 1920X1080 resolution

DVR control box with audio ,video recording and photography function

Built in 6800mA li-ion battery inside

Digital meter counter function, error is less than 1%

All-in-One Design ,Easy to Carry, Easy to use

Applications: Sewage Pipe ,Drainage Pipe, Underground Pipe

______

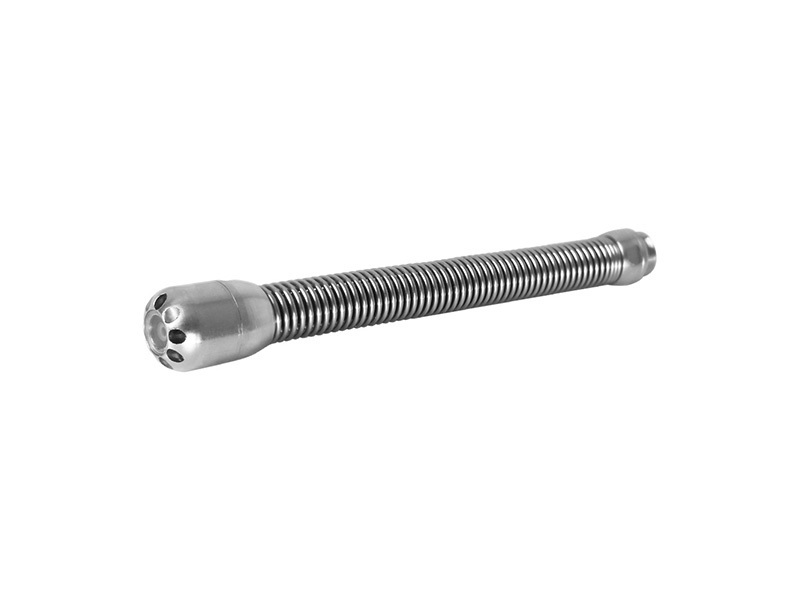

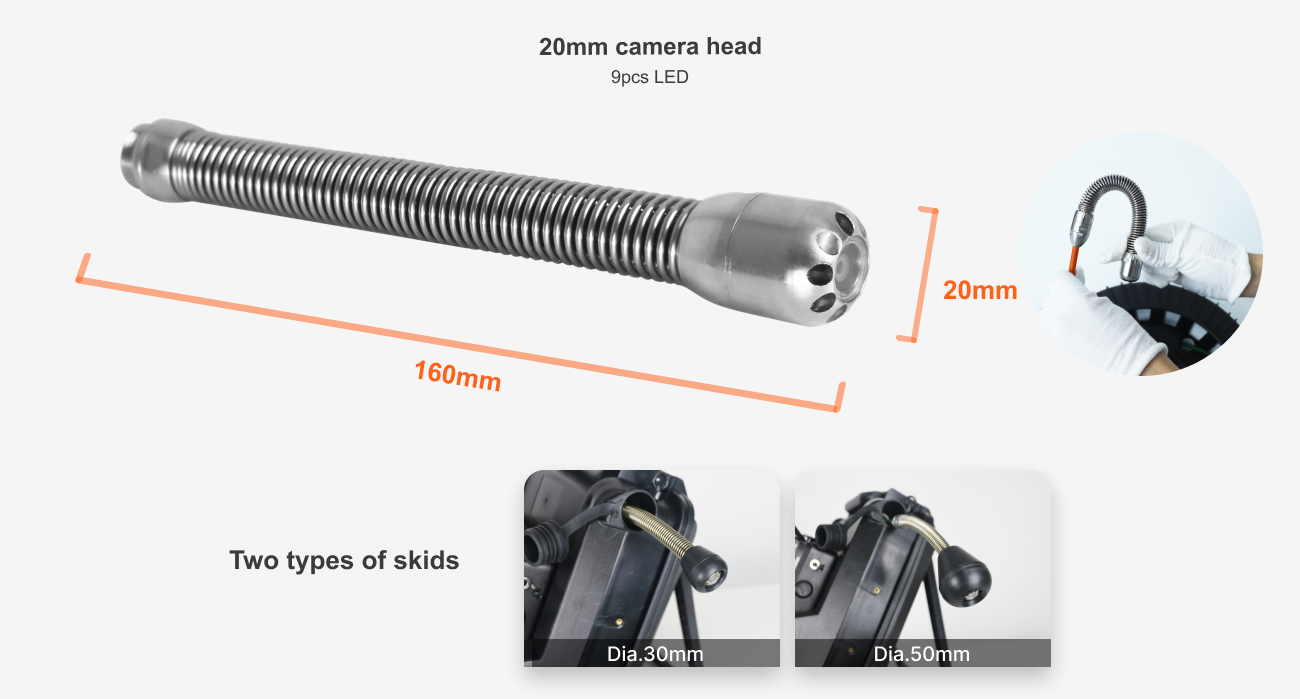

Main Part 1: 20mm camera head

Camera size	Ø20 x 26.5mm
Camera pixel	Sensor 1/3″ CMOS, 2.0MP pixel
Waterproof level	Waterproof IP68
Camera range	View range 90°
Light	9pcs high light LED lighting adjustable
Connector	Detachable with pins type connection to Cable Reel
Material	Lens window sapphire glass & stainless steel

______

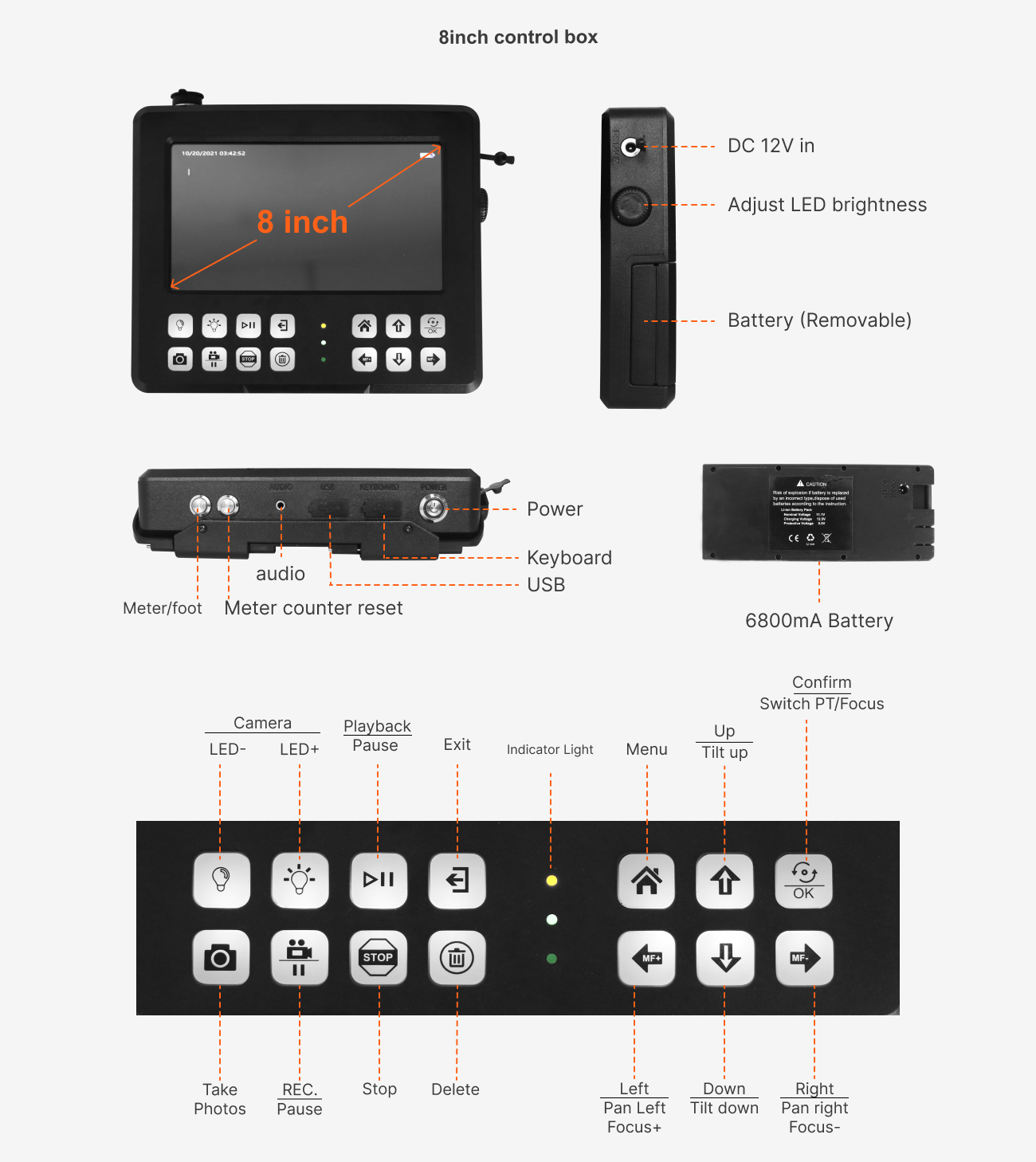

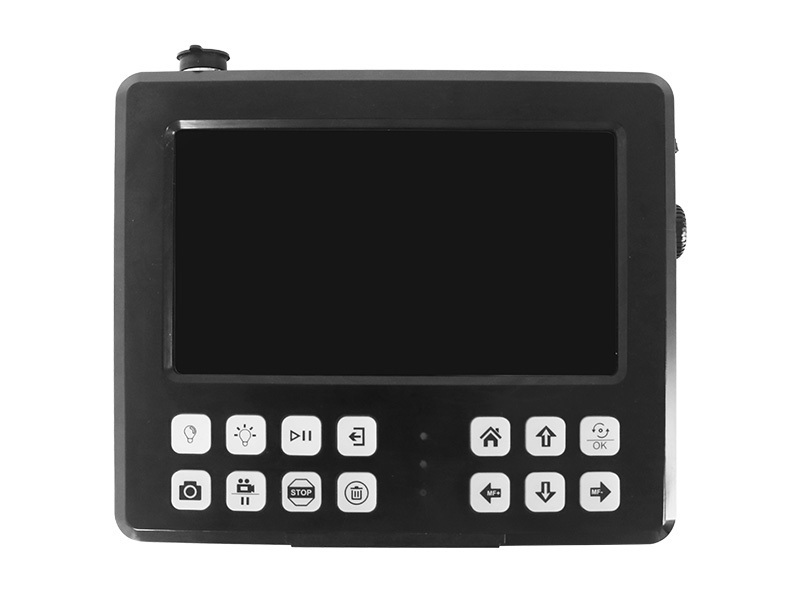

Main Part 2: DVR control unit

Screen Size	8″HD IPS LCD Screen, 1280X720 resolution
Waterproof level	Night version keys for DVR function
Function	1080P format  video, auido and photography function DVR
Meter counter	Digital meter counter function, display on the screen
Battery	6800mA rechargeable Li-ion Battery Pack
	Battery level indicator

______

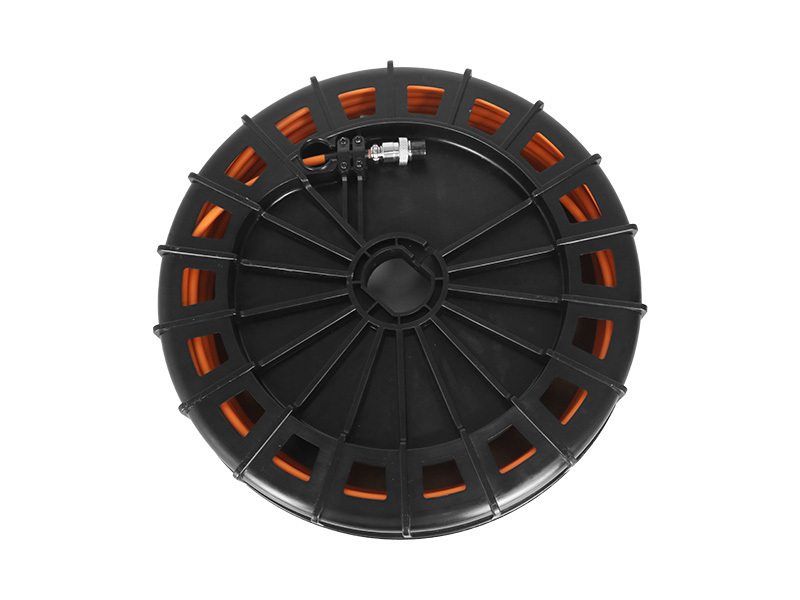

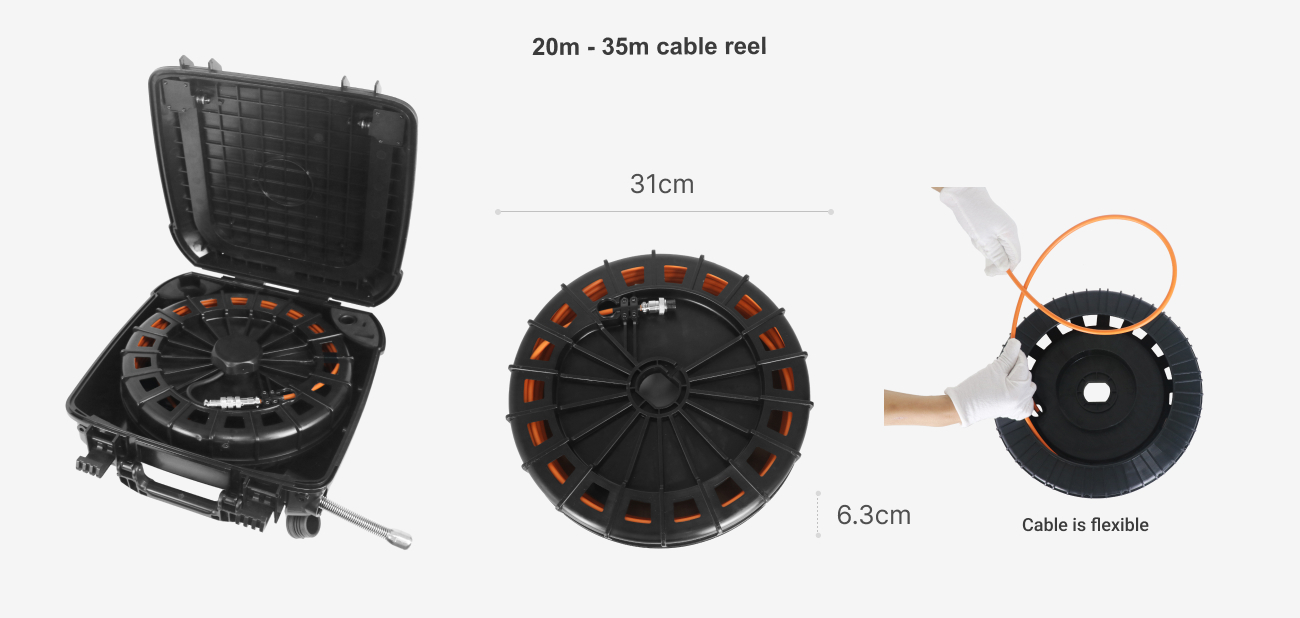

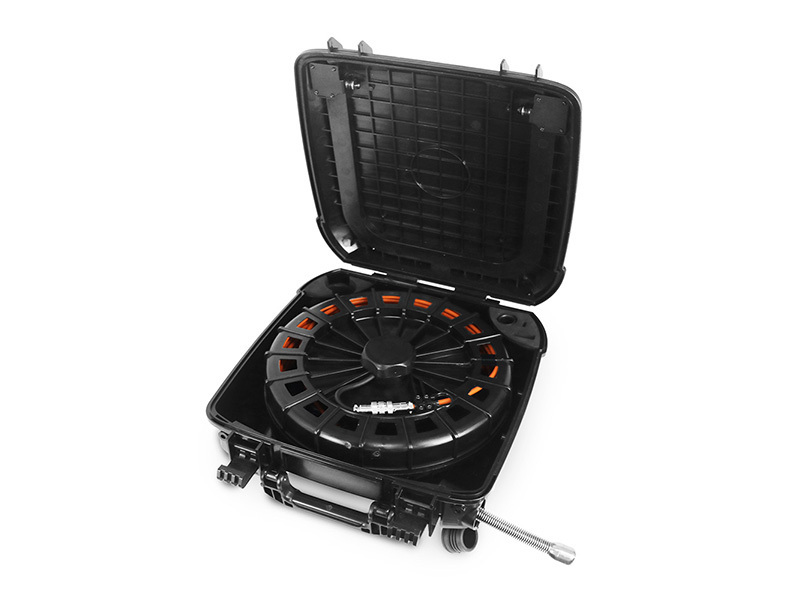

Main Part 3: Cable reel

Meter counter	Digital meter counter
Material	Fiberglass push rod cable
Cable diameter	Ø6mm
Cable length	20m-35m
Reel size	31 x 6.35cm

______

Applications

Detect and identify pipe damage:

  Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.

  Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.

Underground pipeline detection:

   Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.

   Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines

---
