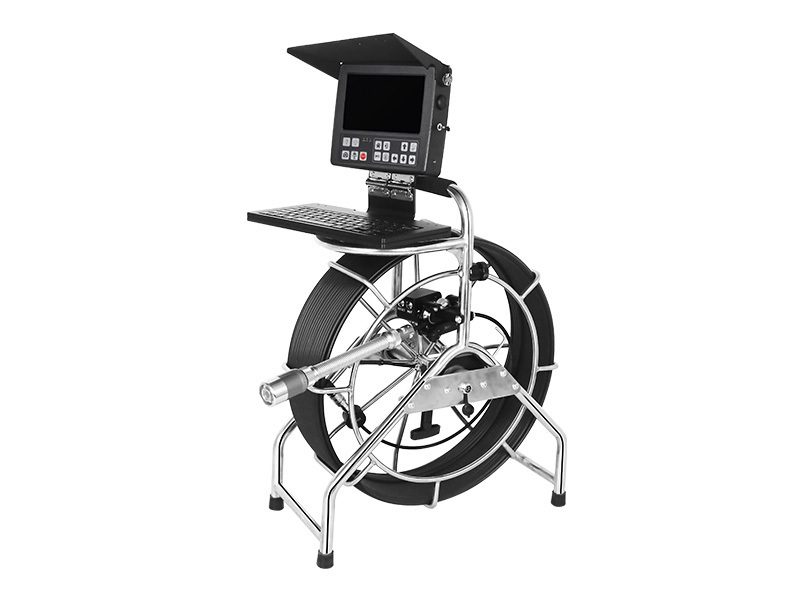

The 40mm Self-levelling AHD 60m Pipe Inspection Camera System is a high-tech tool for inspecting pipes and other narrow spaces. Equipped with a self-levelling camera, it can capture clear footage even in challenging environments. Its 60m length makes it suitable for a variety of applications, including plumbing, construction, and maintenance of underground infrastructure. Whether you need to inspect a sewer line or a ventilation duct, this camera system is a versatile and reliable solution.

______

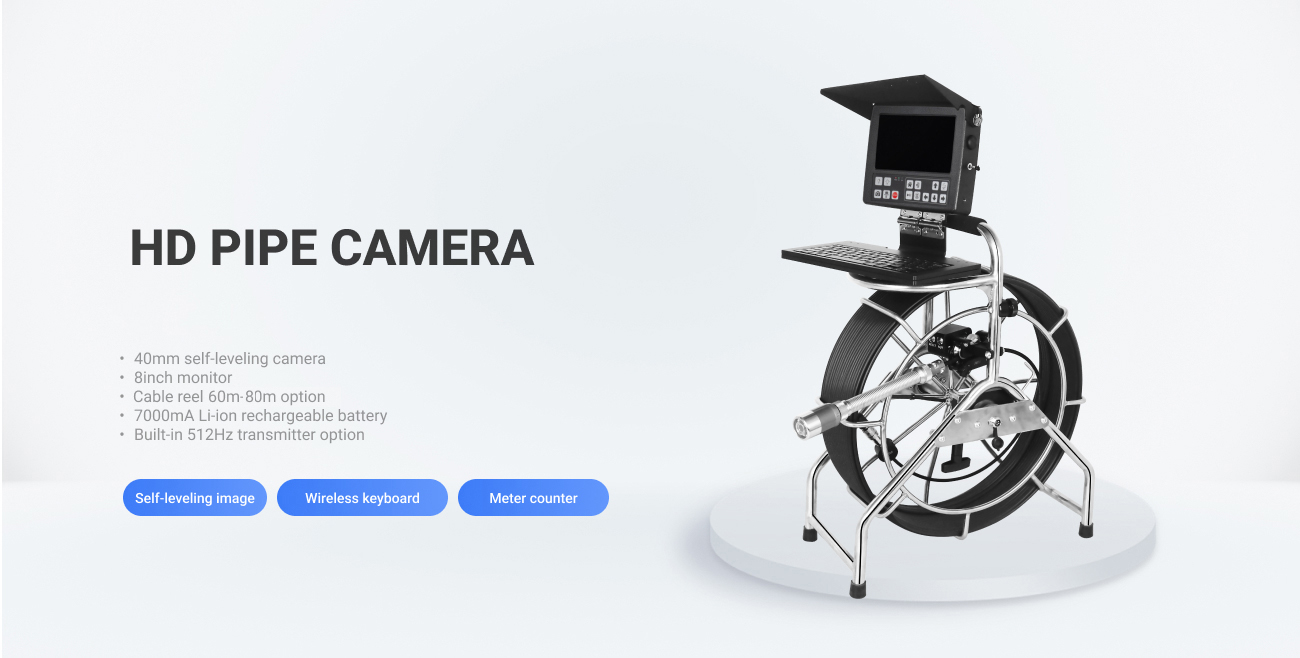

Overview of 40mm self-leveling Camera

Self-leveling image  no matter what angle the camera is at, the image is always upwards.

1/3 CMOS, 1.3MP pilex FHD , waterproof IP68

Waterproof IP68

8 inch IPS lcd screen

DVR control box with audio ,video recording and photography function

USB wireless keyboard to typewrite the words

Built in 7000mA li-ion battery inside

Digital meter counter function, error is less than 1%

______

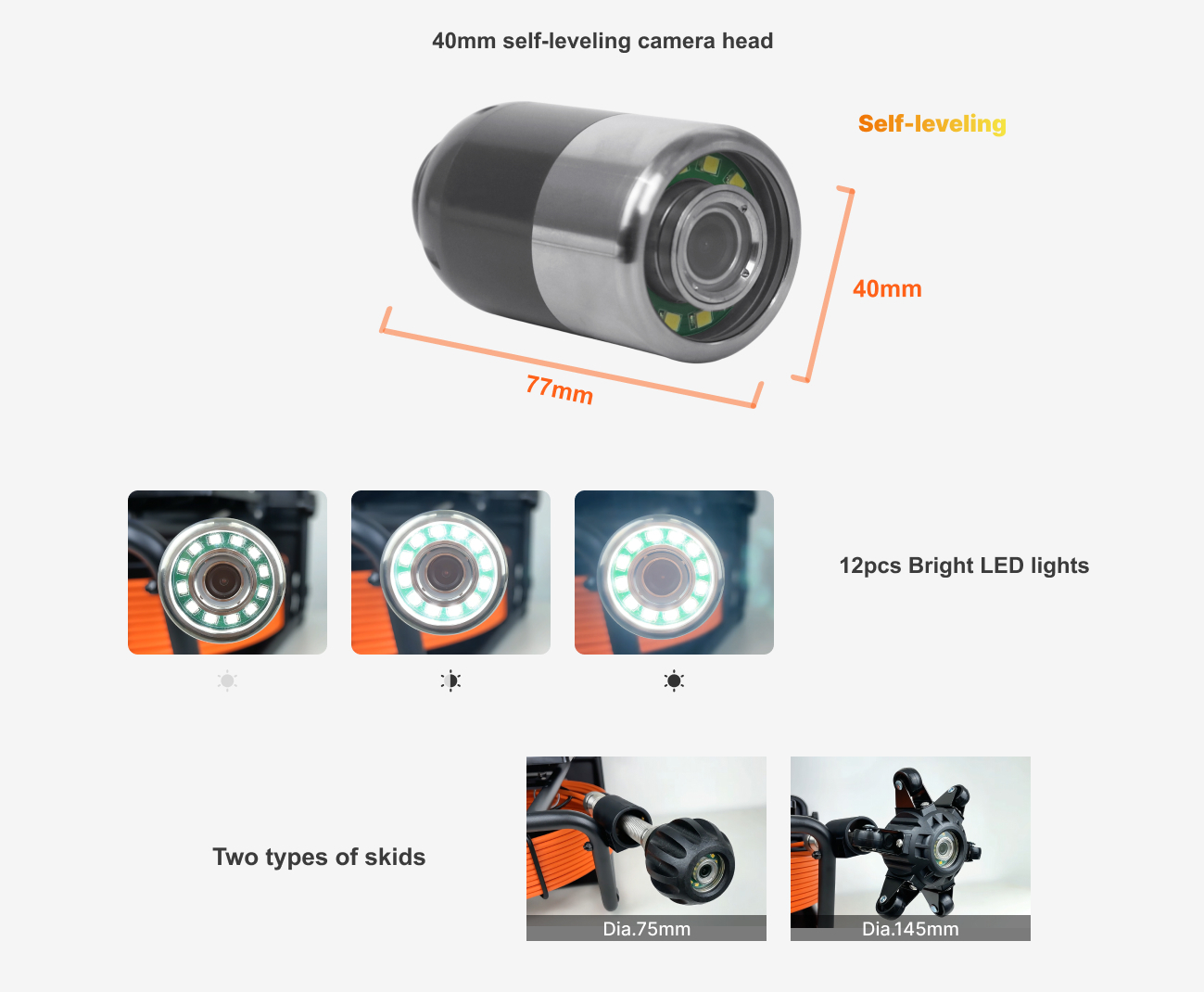

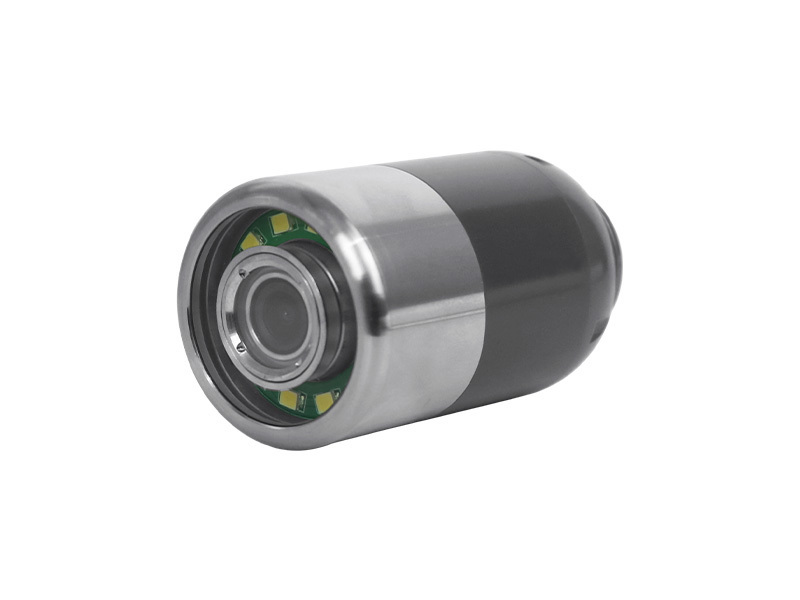

Main Part 1: 40mm self-leveling camera head

Camera size	Ø40mm x 77mm
Camera pixel	Sensor 1/3″ CMOS, 1.3MP pixel
Waterproof level	Waterproof IP68
Camera range	View range 120°
Light	12pcs high light LED lighting adjustable
Connector	Detachable with aviation plug type connection to Cable Reel
Material	Lens window sapphire glass & stainless steel

______

Main Part 2: DVR control unit

Screen Size	8″HD IPS LCD Screen, 1280X720 resolution
Waterproof level	Waterproof keys & waterproof panel
Function	Video, auido and photography function DVR
Keyboard	USB wireless Keyboard real time typewriting
Meter counter	Digital meter counter function, display on the screen
Battery	7000mA rechargeable Li-ion Battery Pack
	Battery level indicator

______

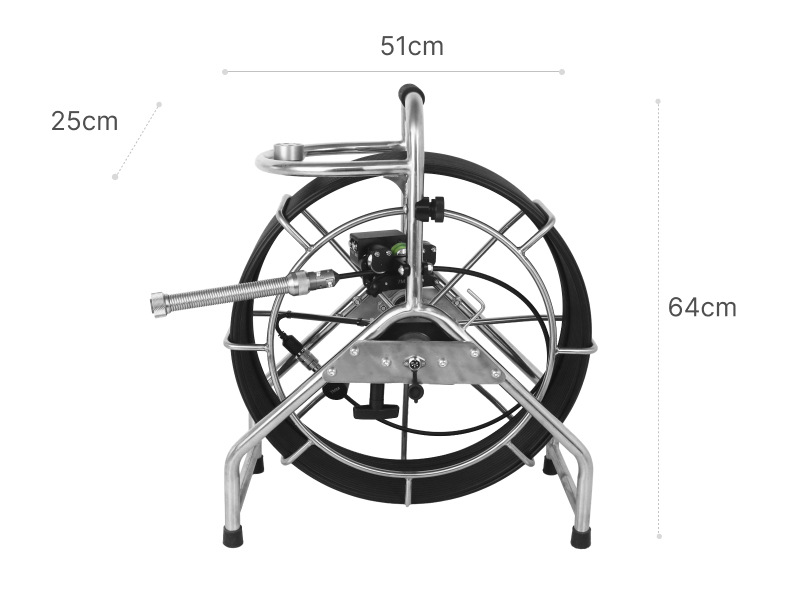

Main Part 3: Cable reel

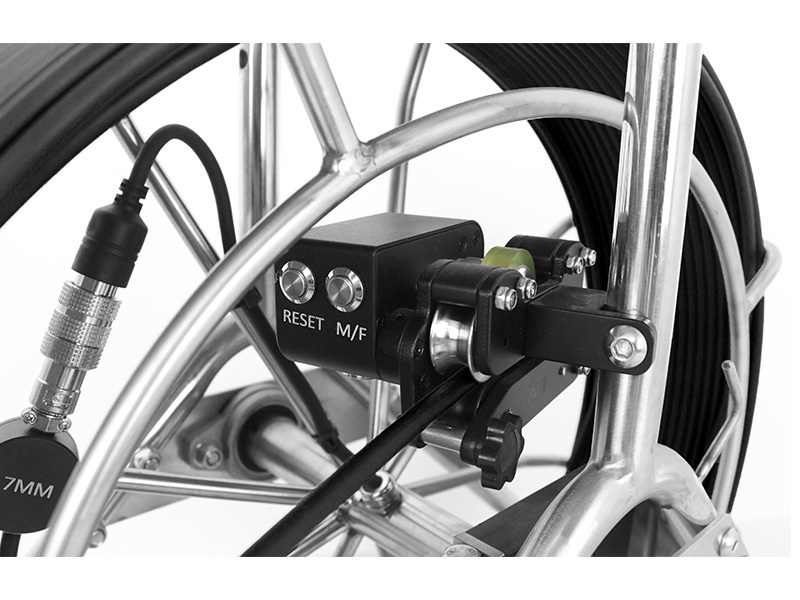

Meter counter	Digital meter counter
Material	Fiberglass push rod cable
Cable diameter	Ø7mm
Cable length	60m-80m
Reel size	51 x 25 x 64cm

______

Applications

Detect and identify pipe damage:

  Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.

  Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.

Underground pipeline detection:

   Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.

   Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines

---
