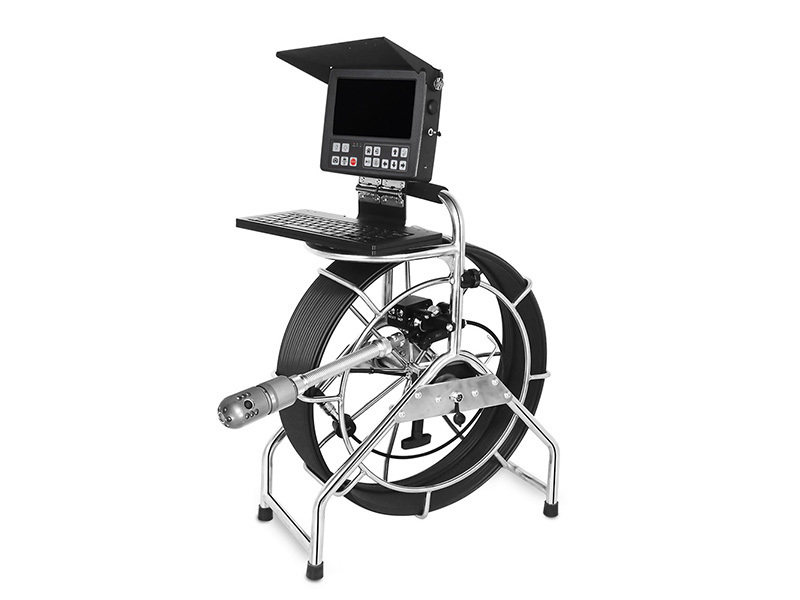

The 45mm AHD 60m Dual View Rotation Pipe Inspection Camera System is a versatile tool for professionals in plumbing, construction, and infrastructure maintenance. This high-tech camera system features dual view rotation capabilities and a 60m cable for thorough inspection of pipes and other hard-to-reach areas. Whether diagnosing blockages, conducting routine maintenance, or performing construction surveys, this camera system is an invaluable asset for ensuring the integrity and safety of pipes and infrastructure.
Dual-view capability provides a comprehensive view of pipe interiors
Long cable range of 60m enables inspection of a variety of pipe lengths
Cutting-edge technology ensures accurate and efficient pipe inspections

______

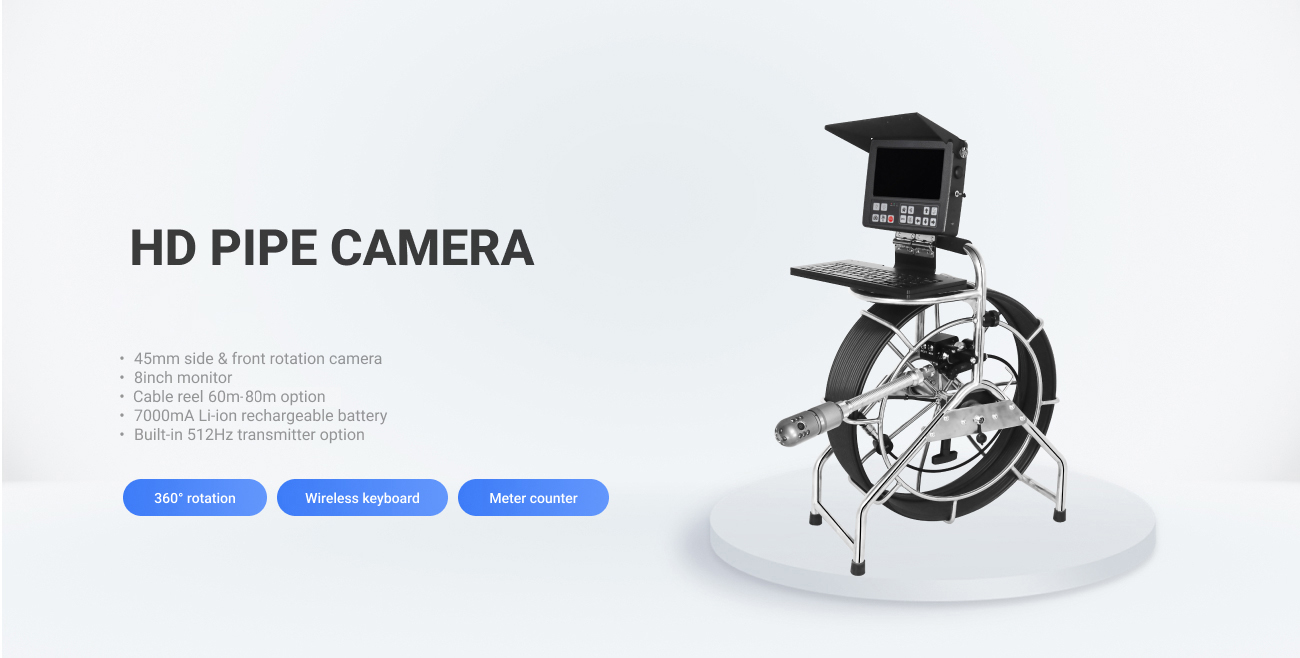

Overview of 45mm Side & Front Sewer Camera

Dia.45mm side & front 360° rotation camera

1/3 CMOS, 1.3MP pilex HD , waterproof IP68

8 inch IPS lcd screen

DVR control box with audio ,video recording and photography function

USB wireless keyboard to typewrite the words

Built in 7000mA li-ion battery inside

Digital meter counter function, error is less than 1%

______

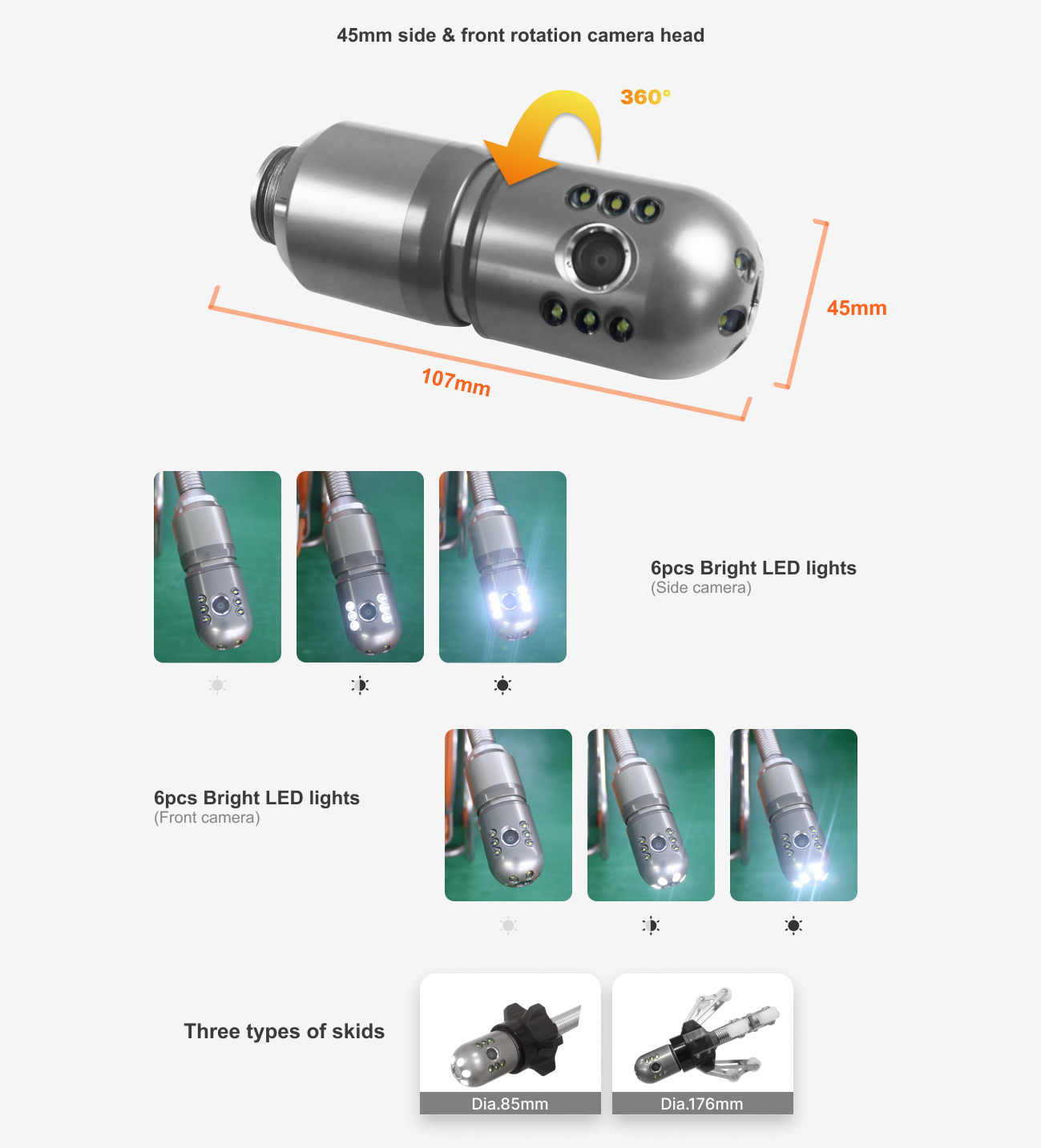

Main Part 1: 45mm side & front 360° rotation camera head

Camera size	Ø45mm x 107mm
Camera pixel	Sensor 1/3″ CMOS, 1.3MP pixel
Waterproof level	Waterproof IP68
Camera range	View range 101°
Transmitter	Built-in 512Hz transmitter optional
Rotation range	Rotation: Pan 360°
Light	6pcs high light LED lighting adjustable (down view & side view)
Connector	Detachable with pins type connection to Cable Reel
Material	Lens window sapphire glass & stainless steel

______

Main Part 2: DVR control unit

Screen Size	8″HD IPS LCD Screen, 1280X720 resolution
Waterproof level	Waterproof keys & waterproof panel
Function	Video, auido and photography function DVR
Keyboard	USB wireless Keyboard real time typewriting
Meter counter	Digital meter counter function, display on the screen
Battery	7000mA rechargeable Li-ion Battery Pack
	Battery level indicator
Control box size	23 x 20 x 5 cm
Sunshade	Sunshade included

______

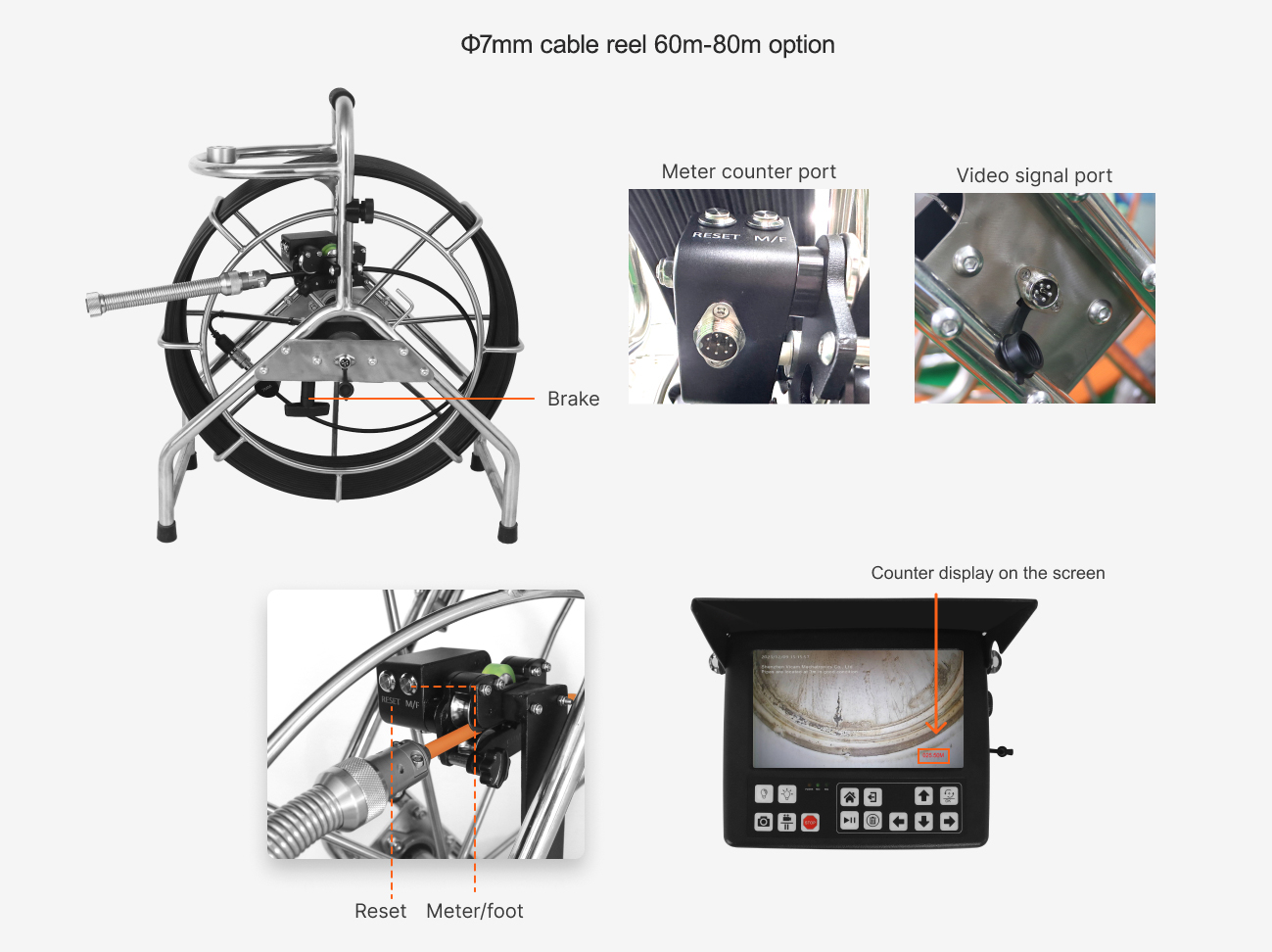

Main Part 3: Cable reel

Meter counter	Digital meter counter
Material	Fiberglass push rod cable
Cable diameter	Ø7mm
Cable length	60m-80m
Reel size	51 x 25 x 64cm

______

Applications

Detect and identify pipe damage:

  Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.

  Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.

Underground pipeline detection:

   Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.

   Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines

---
