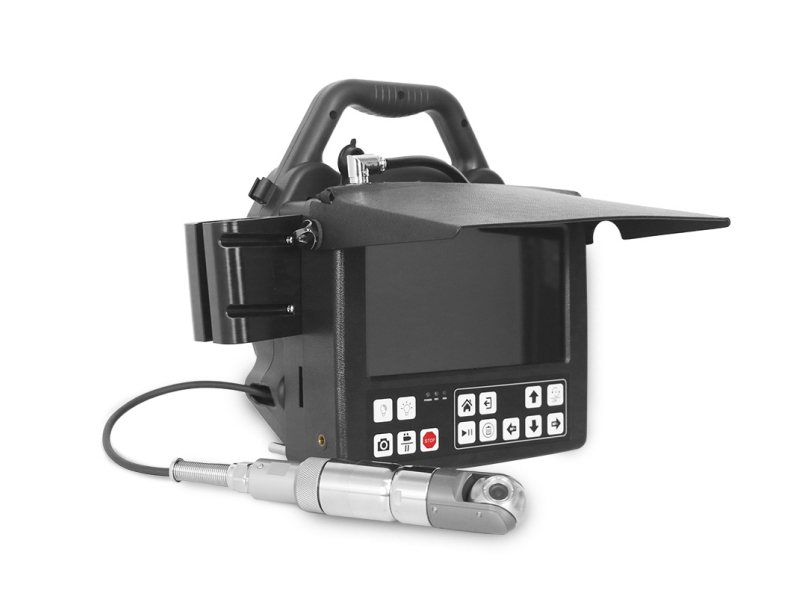

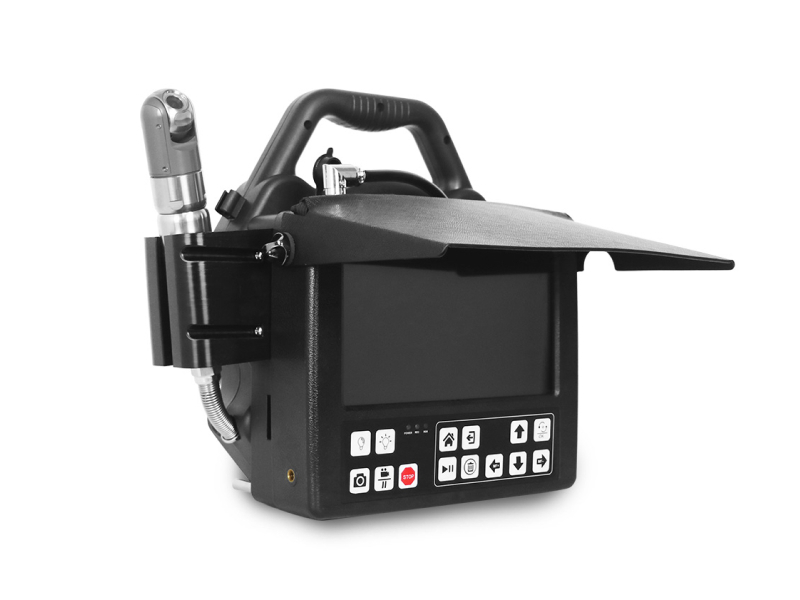

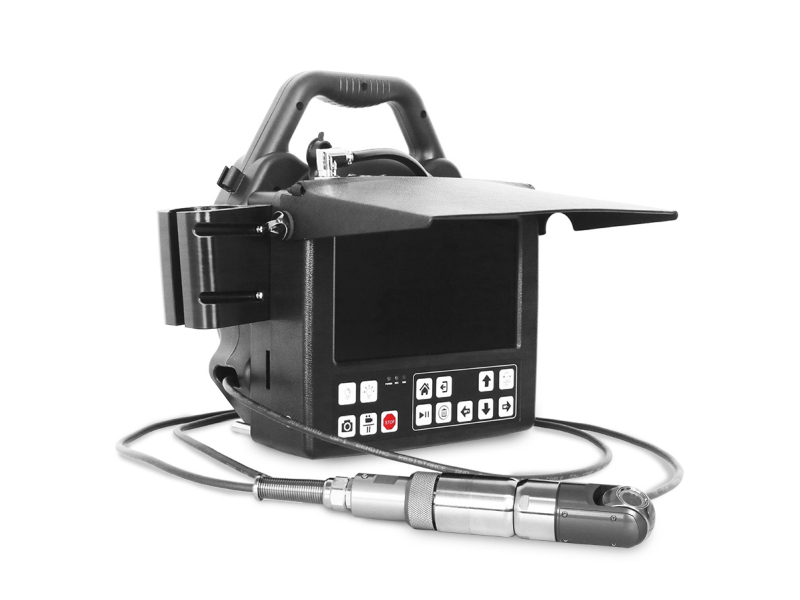

This portable AHD chimney inspection camera features a 33mm pan-tilt design, allowing for easy and thorough visual inspections. The high-definition camera delivers clear images, making it a valuable tool for chimney maintenance and repair professionals.

______

Overview of 33mm dual rotation Camera

33mm Pan 360 degree Tilt 180 degree rotation camera

1/3 CMOS, 1.3MP pilex AHD , waterproof IP68

8 inch IPS lcd screen

DVR control box with audio ,video recording and photography function

Built in 7000mA li-ion battery inside

______

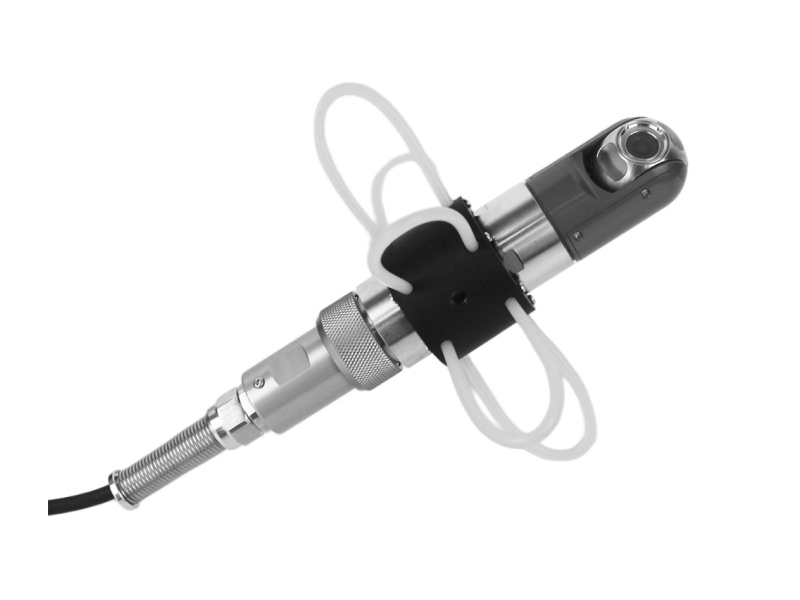

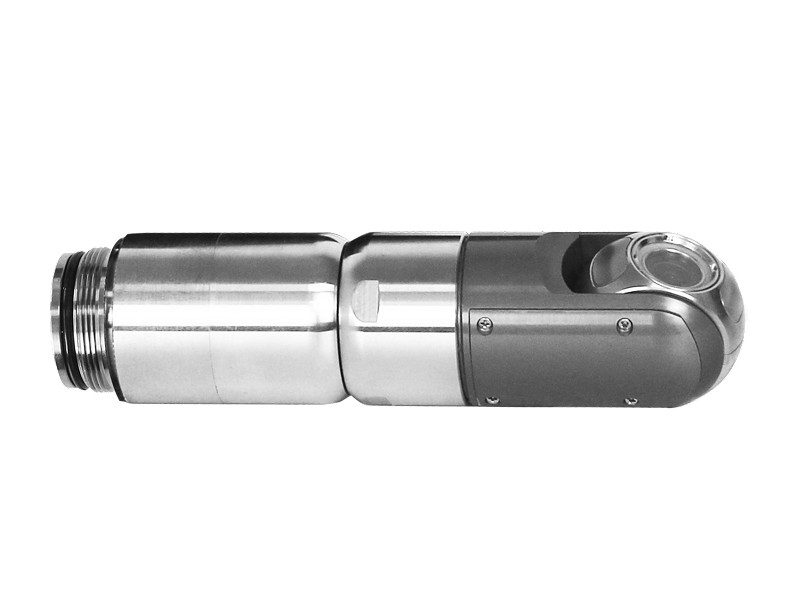

Main Part 1: 33mm Pan 360 degree Tilt 180 degree rotation camera head

Camera size	Ø33mm x 128mm
Camera pixel	Sensor 1/3″ CMOS, 1.3MP pixel
Waterproof level	Waterproof IP68
Camera range	View range 120°
Light	4pcs high light LED lighting adjustable
Connector	Detachable with pins type connection to Cable Reel
Material	Lens window sapphire glass & stainless steel

______

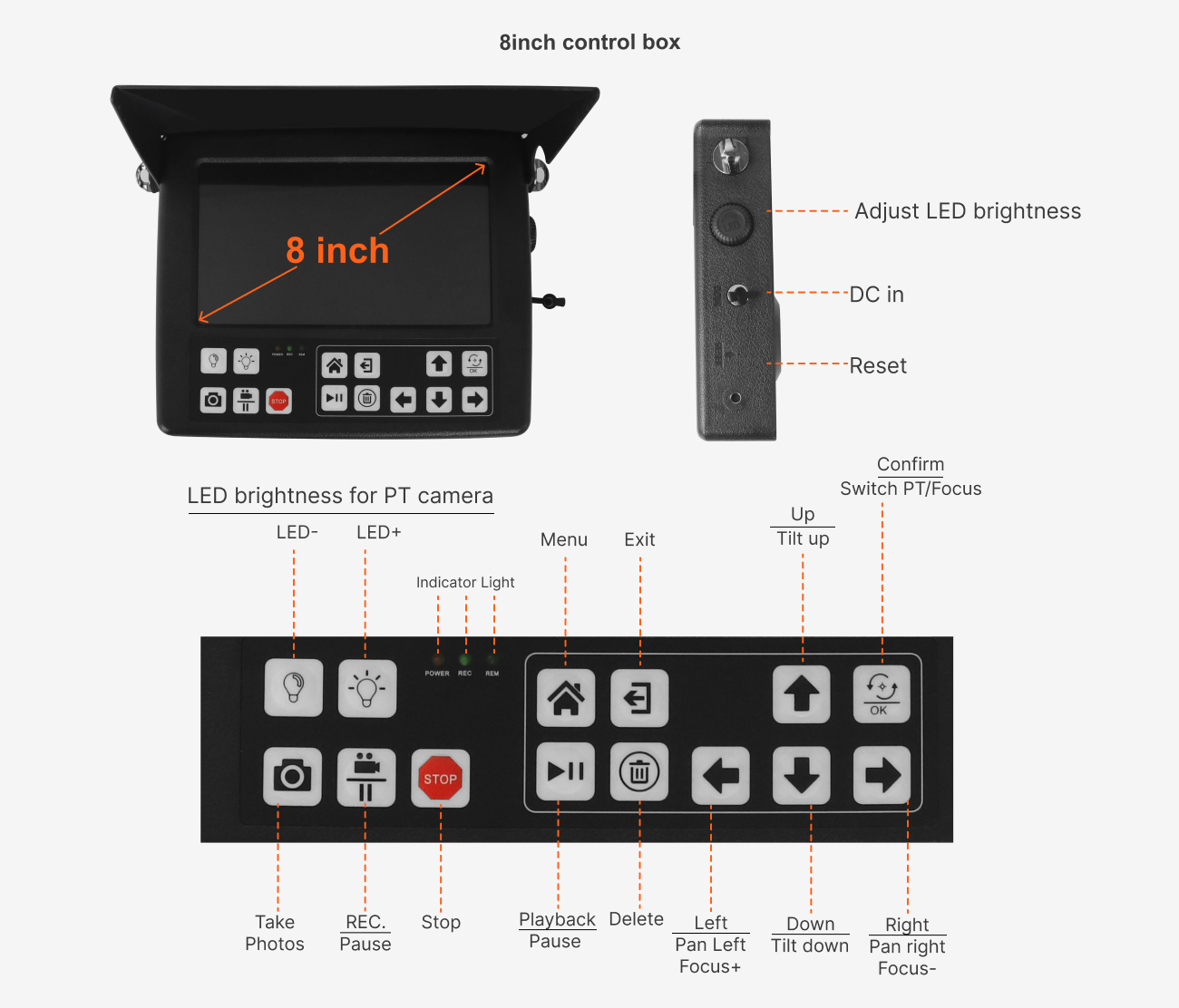

Main Part 2: DVR control unit

Screen Size	8″HD IPS LCD Screen,1280*720 resolution
Waterproof level	Waterproof keys & waterproof panel
Function	Video, auido and photography function DVR
Meter counter	Digital meter counter function, display on the screen
Battery	7000mA rechargeable Li-ion Battery Pack
	Battery level indicator

______

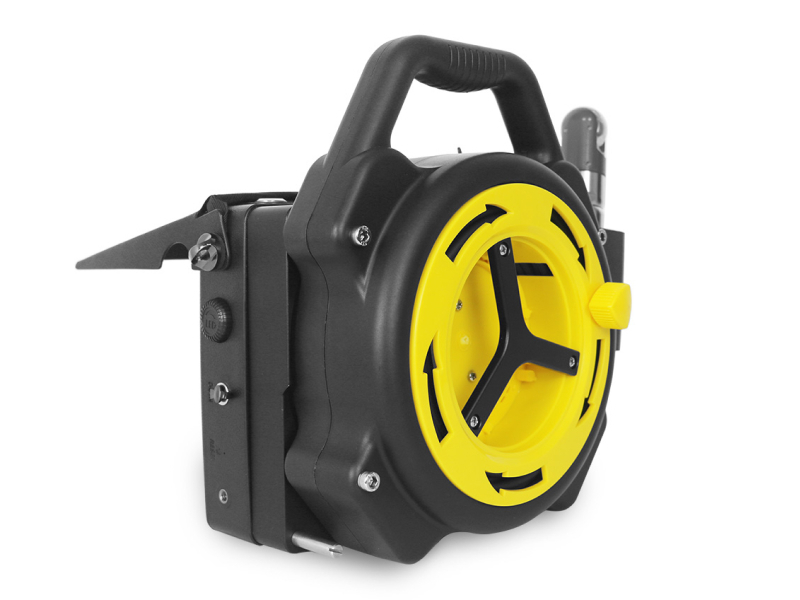

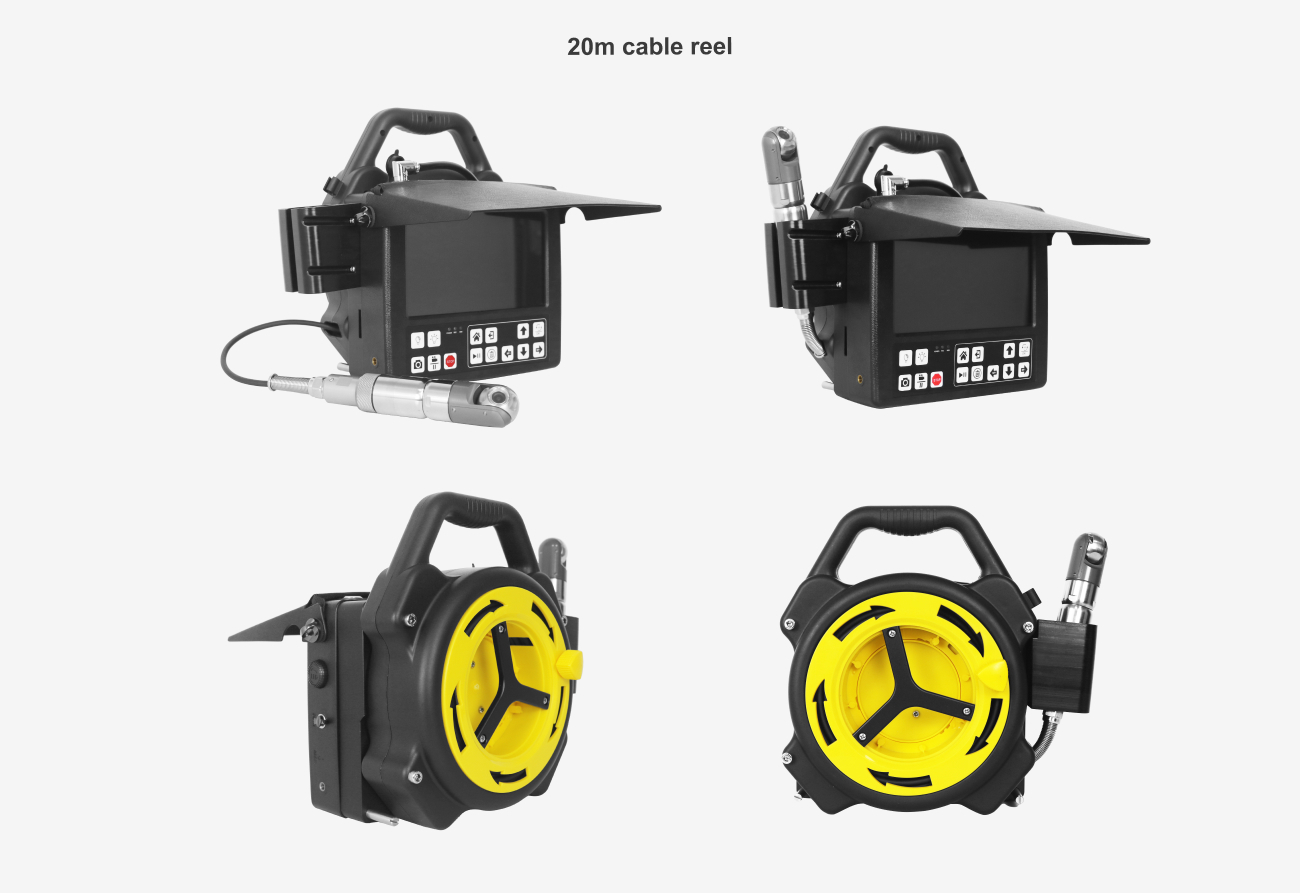

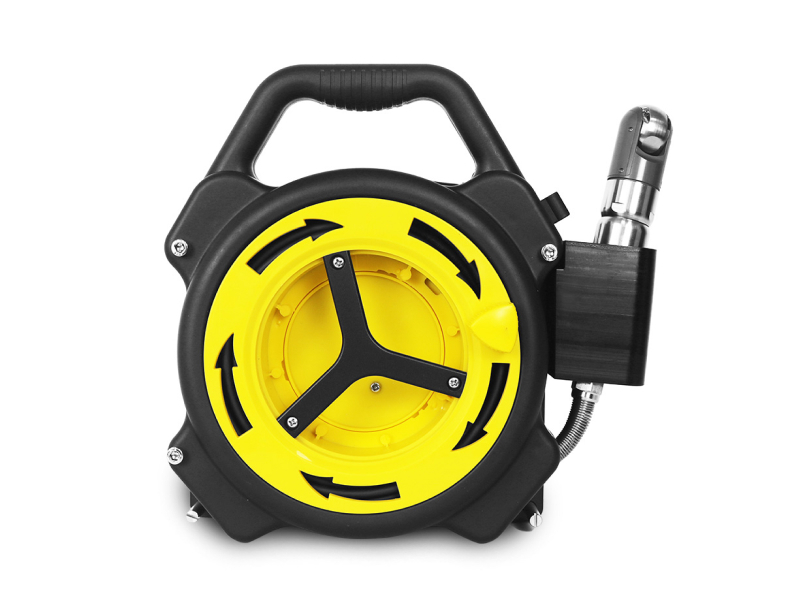

Main Part 3: Cable reel

Meter counter	Digital meter counter
Cable diameter	Ø5mm
Cable length	20m

______

Applications

Detect and identify pipe damage:

  Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.

  Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.

Underground pipeline detection:

   Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.

   Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines

---
