V8-U45MR2 Underwater 45mm dual rotation Camera 100m to 200m soft cable with manual reel inspecting boreholes and wells

V8-U45MR2 Underwater 45mm dual rotation Camera 100m to 200m soft cable with manual reel inspecting boreholes and wells

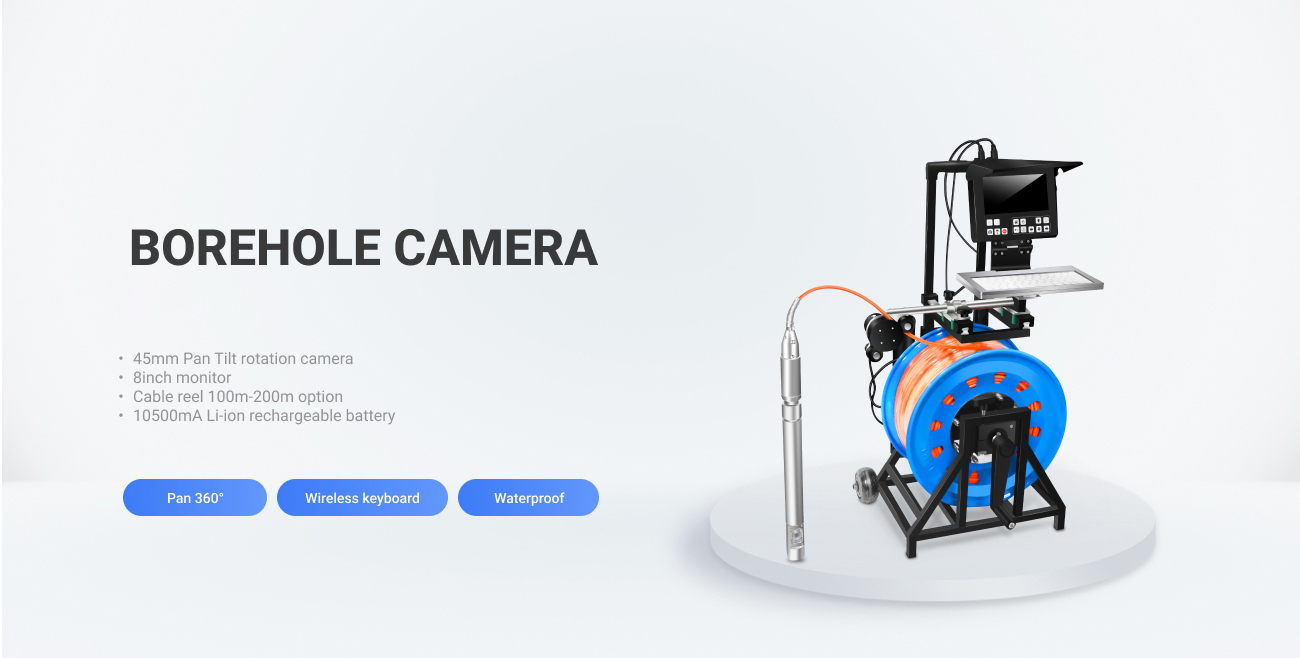

The 45mm AHD 200m dual view rotation borehole camera is a high-quality and versatile tool designed for inspecting boreholes and wells. With its dual view rotation capability, it provides comprehensive visual coverage of the interior of the borehole up to 200m deep.

Model No. : V8-U45MR2

Screen Size : 8 inch HD IPS LCD Screen

Camera Size : Ø45mm x 506mm dual rotation

Cable Reel : Ø8mm 100m to 200m with manual reel

Power Supply : 10500mA Li-ion rechargeable battery

User Manual

Case Video


product detail

The 45mm AHD 200m dual view rotation borehole camera is a high-tech, durable camera designed for inspecting boreholes with a depth of up to 200m. Its dual-view rotation feature allows users to view the borehole from different angles, providing a comprehensive inspection of the area.
The selling points that can impress users include its advanced AHD technology, which ensures high-quality, clear images even in challenging conditions; its durable construction, allowing it to withstand the harsh environment of boreholes; and its ability to rotate and provide dual views, ensuring a thorough inspection of the borehole.

______

Overview of 45mm Dual view (side/down) Sewer Camera

Dia.45mm dual view(side/down) rotation camera head
Pan 360° rotation, Wateproof 20bars, 1/3 CMOS,1.3MP pixel HD camera sensor
Adjustable focus function for side camera
8 inch IPS icd screen,1280*720 resolution
DVR control box with audio ,video recording and photography function
USB wireless keyboard to typewrite the words
Built in 10500mA li-ion battery inside
Digital meter counter function, error is less than 1%

______

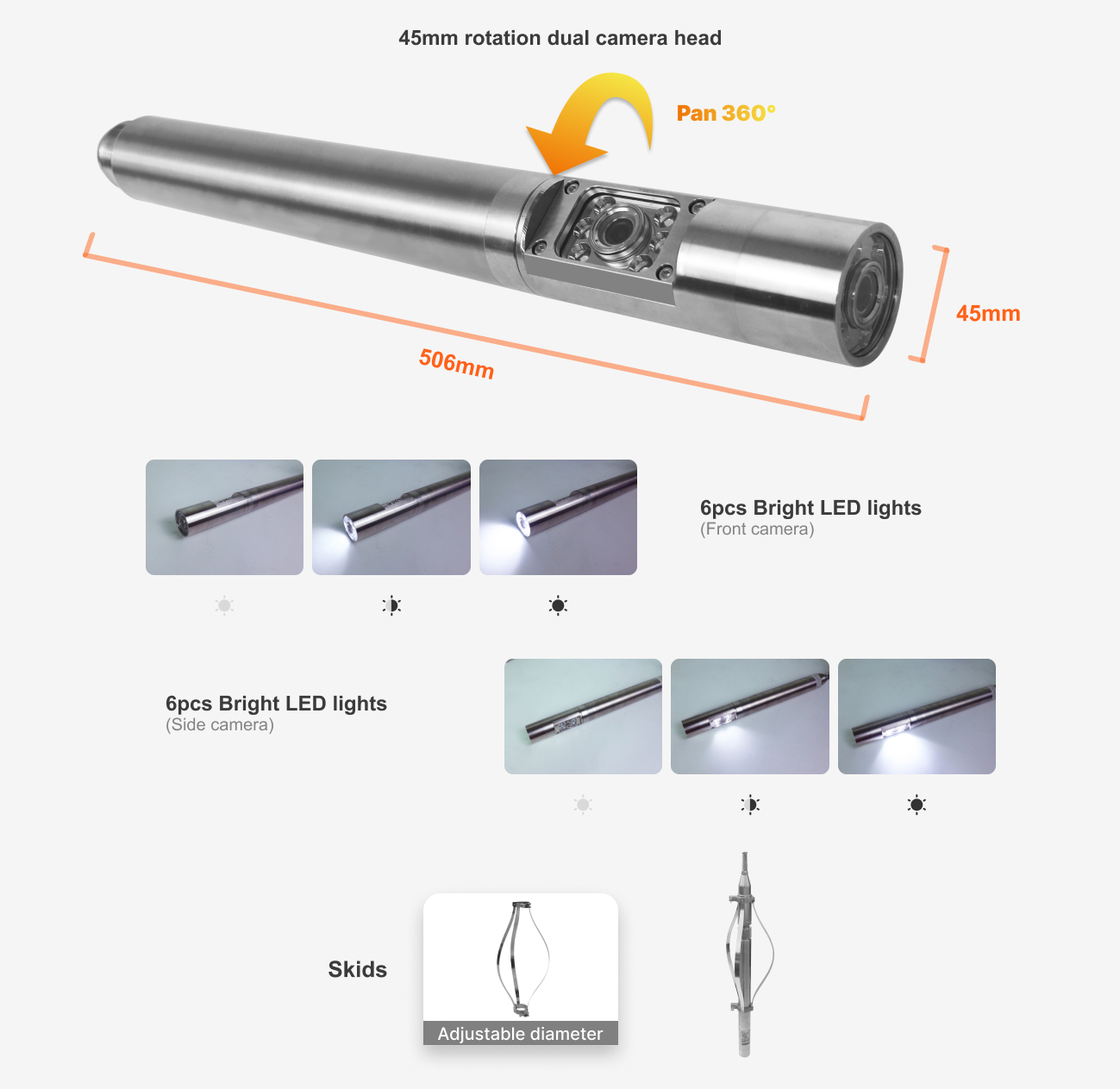

Main Part 1: 45mm Dual view (side/down) camera head

Camera sizeØ45mm x 506mm
Camera pixelSensor 1/3″ CMOS, 1.3MP pixel
Waterproof levelWaterproof IP68, waterproof 50bars (underwater 500m)
Camera rangeView range 120°
FocusingManual focus fpr side camera
Rotation rangeRotation: Pan 360°, Tilt 180°
Light6pcs high light LED lighting adjustable (side & down camera)
ConnectorDetachable with aviation plug type connection to Cable Reel
MaterialLens window sapphire glass & stainless steel

______

Main Part 2: DVR control unit

Screen Size8″HD IPS LCD Screen, 1280X720 resolution
Waterproof levelWaterproof keys & waterproof panel
FunctionVideo, auido and photography function DVR
KeyboardUSB wireless Keyboard real time typewriting
Meter counterDigital meter counter function, display on the screen
Battery8800mA rechargeable Li-ion Battery Pack
Battery level indicator
JoystickSwitch button for side and down camera

______

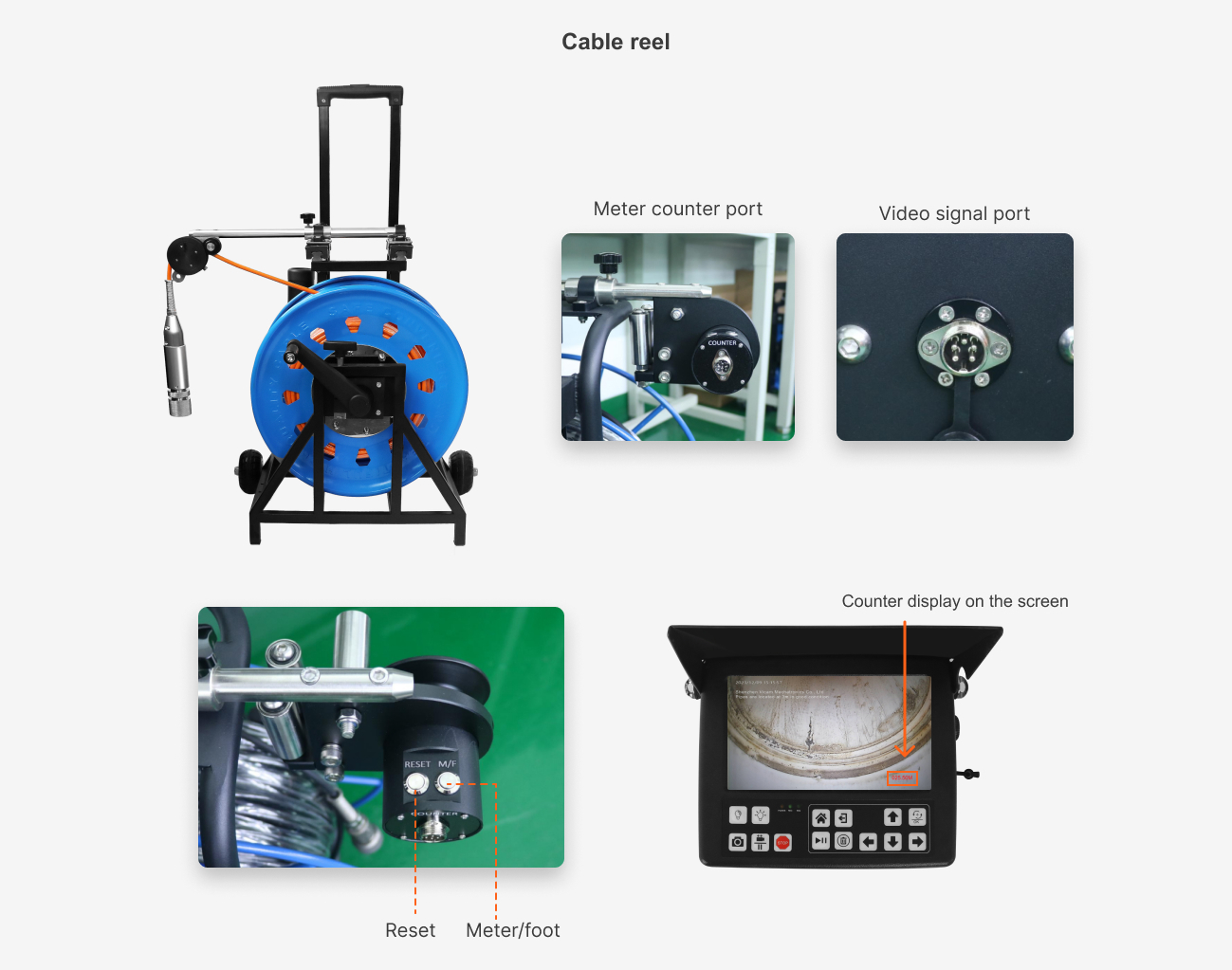

Main Part 3: Cable reel

Meter counterDigital meter counter
MaterialOxygen free copper flexible cable
Cable diameterØ8mm
Cable length100m-200m
Reel size50 x 55 x 70 cm

______

Applications

Detect and identify pipe damage:

  Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.

  Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.

Underground pipeline detection:

   Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.

   Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines


Frequently Asked Questions

1、 Who are we?

We are the professional suppliers of sewer drain pipe inspection cameras.

2How can we guarantee quality?

We have 100% test before delivery and all products have at least 48 hours Aging Testing to make sure good quality.

3What can you buy from us?

Pipe inspection camera,Under water Inspection camera,Endoscope inspection camera,CCTV video inspection camera.
