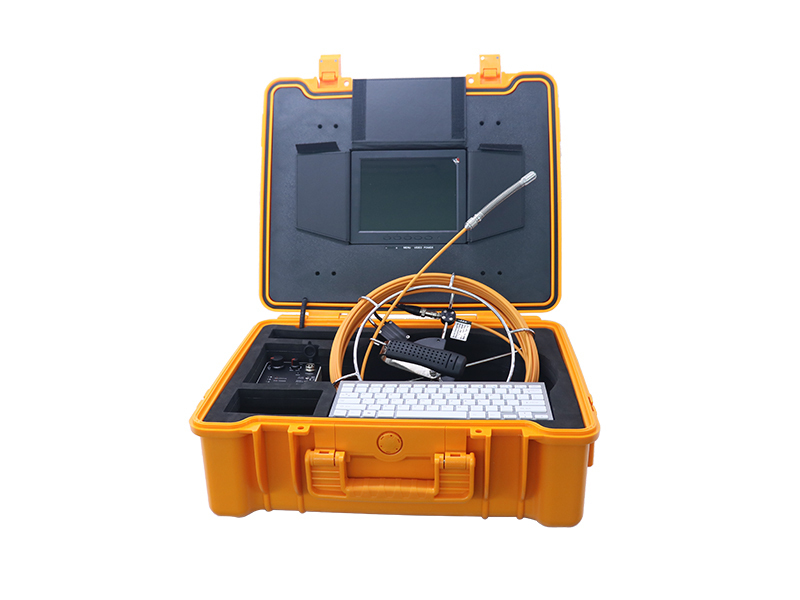

V8D-P14B5 MINI 14mm Camera 20m to 50m fiberglass push rod cable 8inch Box-type borehole Inspection
The 14mm Mini Portable Pipe Endoscope Inspection Camera is a compact and versatile tool that allows for easy visual inspection of hard-to-reach areas such as pipes, engines, and other small spaces. With its high-resolution camera and flexible tube, this device is perfect for DIY home improvements and professional inspections alike.
Model No. : V8D-P14B5
Screen Size : 8 inch TFT LCD Screen
Camera Size : Φ14 x30mm
Cable Reel : Φ5.2mm 20m-50m Fiberglass push rod cable
Power Supply : 12V 6600mA Rechargeable li-ion Battery Pack
product detail

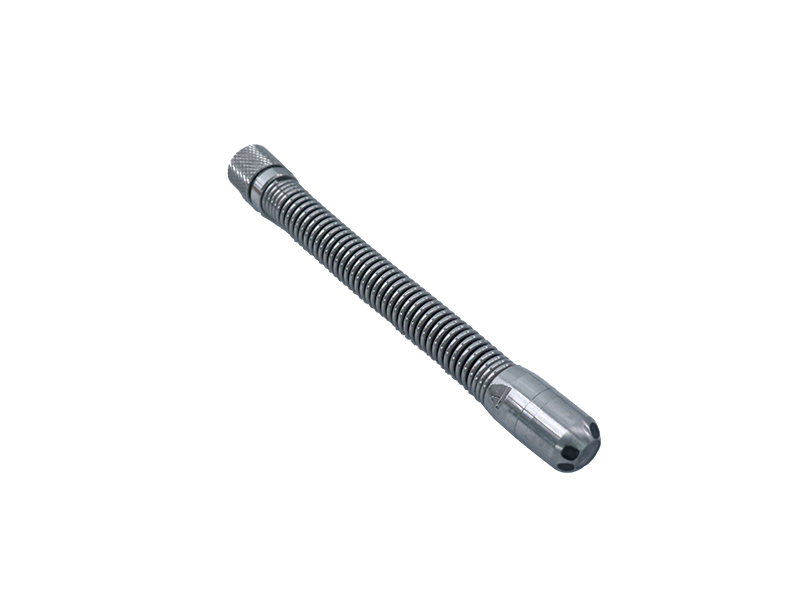

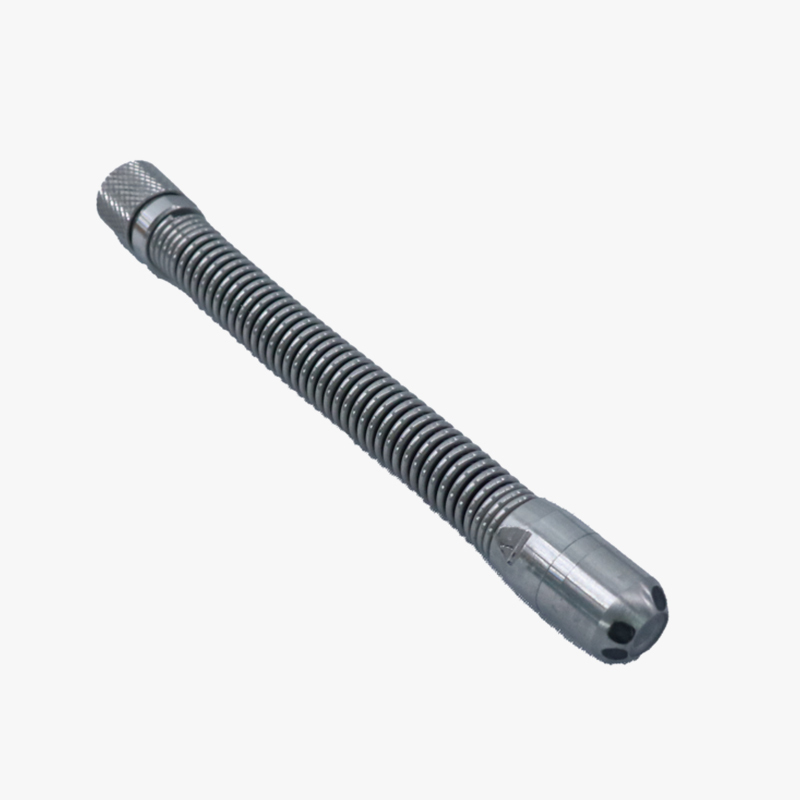

Camera Head
● Camera head size Φ14 x 30mm
● 420TVL 1/4’’ CMOS camera
● Camera head casing material stainless steel
● Total Pixels PAL 720X576 NTSC 720X 480
● Field of view 120°,IP68 waterproof
● 6pcs high intensity white LED

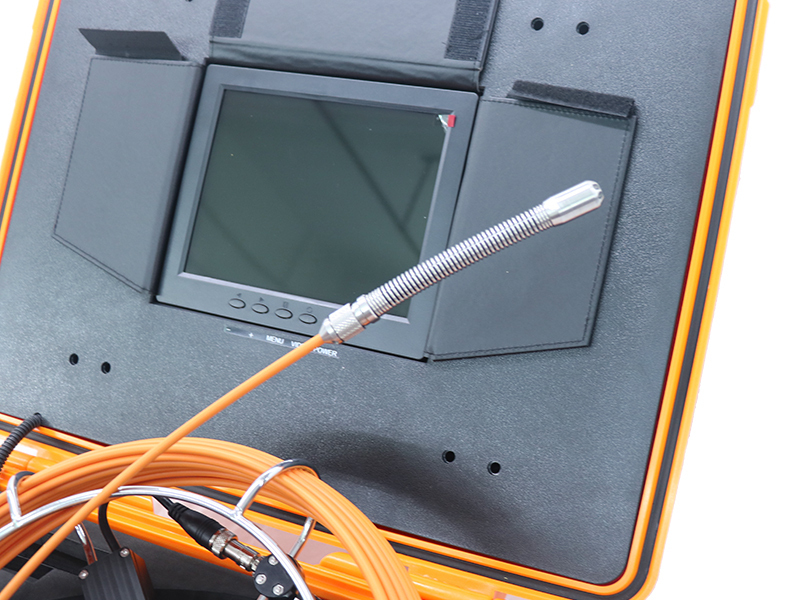

Monitor
● 8 inch TFT LCD monitor
● 800×600 pixels
● 4:3 display model
● Brightness:400cd/m2
● Sun shield and remote control included
DVR Control Box
● DVR control buttons
● SD card (max 64G) jack,keyboard jack
● LED brightness adjusting knob
● A / V & photo selection available
● On/off microphone control button
● Battery level indicator lights
● Video / audio output to another screen

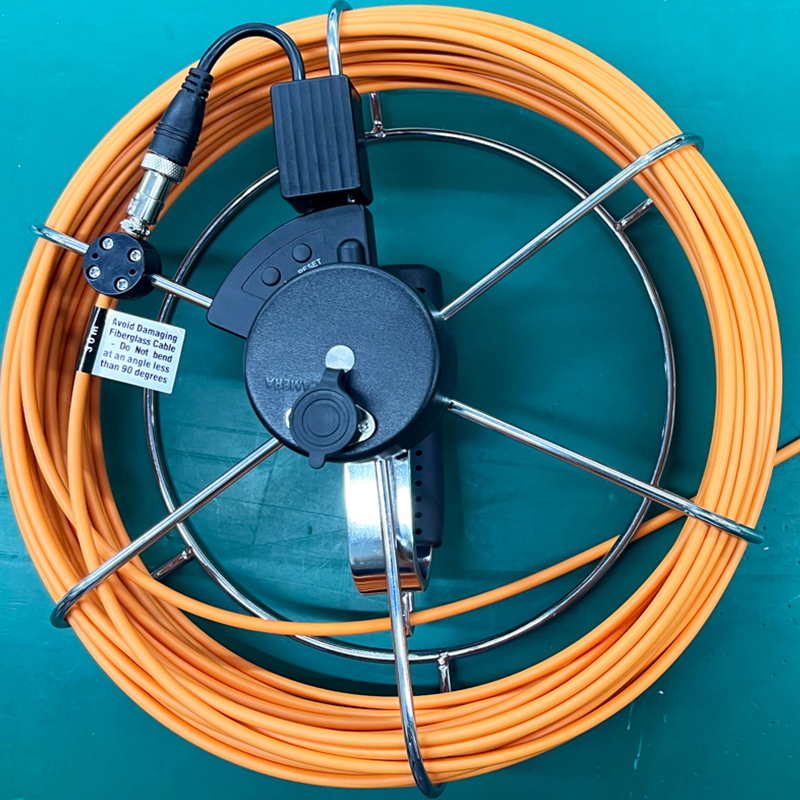

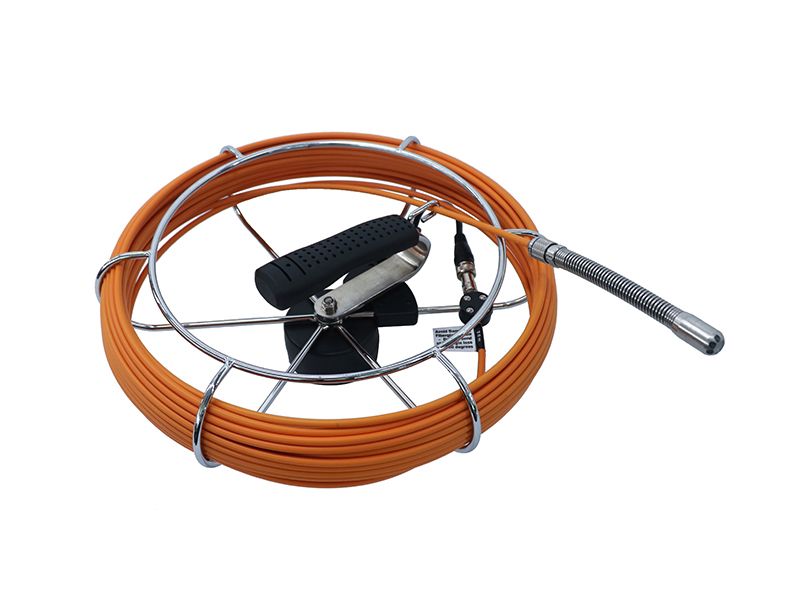

Cable Reel
● Fibreglass push rod cable with meter counter
● F/M buttom to switch”feet/meter”
● Cable diameter Φ5.2mm
● Cable length from 20m to 50 optional
● Reel size Φ 320 x 110mm
Battery Pack & Charger
● 6600mA li-ion battery
● AC110V-240V 1.5A power charger
● Charging time 5 hours, working time 6 hours

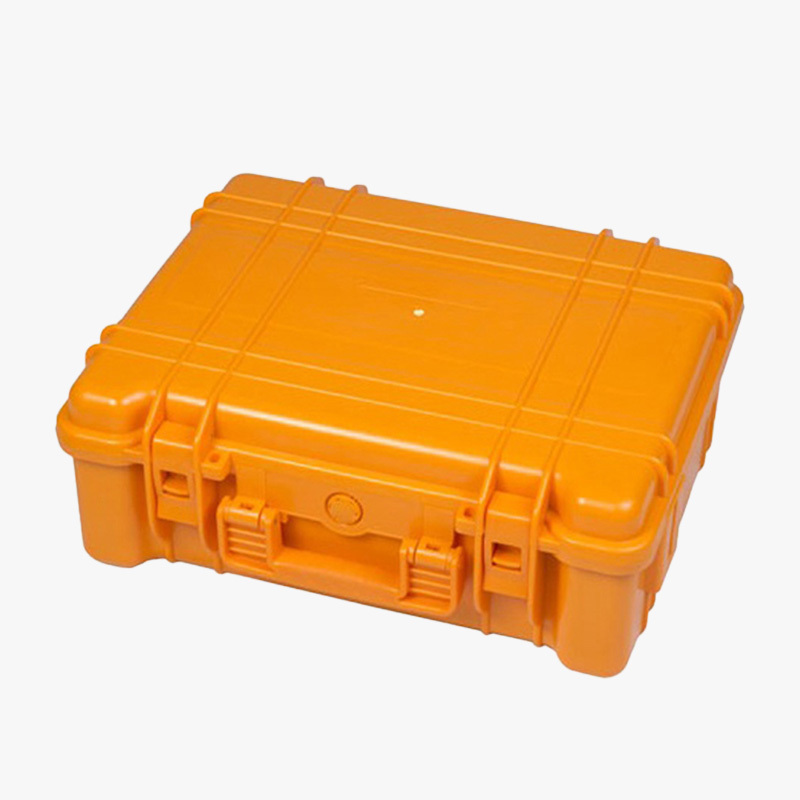

ABS Engineer Case
● Case size: 520 x 435 x 200mm
● Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
● Storage temperature: – 20 to 70 degrees Celsius, RH 95% maximum
______
Applications
Detect and identify pipe damage:
Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.
Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection:
Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.
Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines
