The 23mm Portable Sewer Inspection Camera System is a compact and versatile tool for inspecting drains, pipes, and sewer systems. Its high-definition camera provides clear and detailed footage, allowing for easy and accurate inspection of hard-to-reach areas. With its lightweight and portable design, it is a convenient and efficient solution for professionals in the plumbing, construction, and maintenance industries.
Selling Points:
High-definition camera for clear and detailed footage of pipes and sewer systems.
Portable and lightweight design for easy maneuverability and convenience.
Versatile tool for professionals in plumbing, construction, and maintenance industries.

______

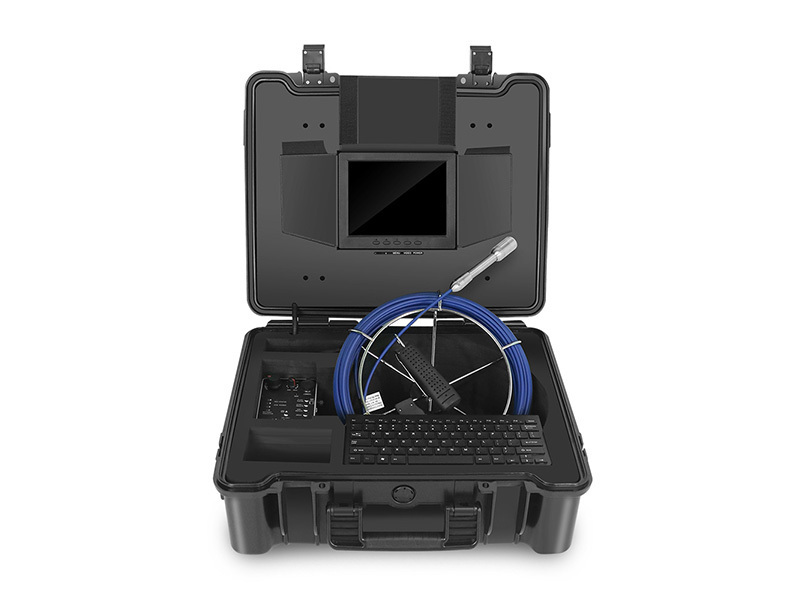

Overview of 23mm portable Camera

Camera head size Φ23 x 53mm for pipe Φ25 to 200mm

Waterproof IP68

8 inch IPS lcd screen

DVR control box with audio ,video recording and photography function

USB wireless keyboard to typewrite the words

Built in 6600mA li-ion battery inside

Meter counter function, error is less than 1%

______

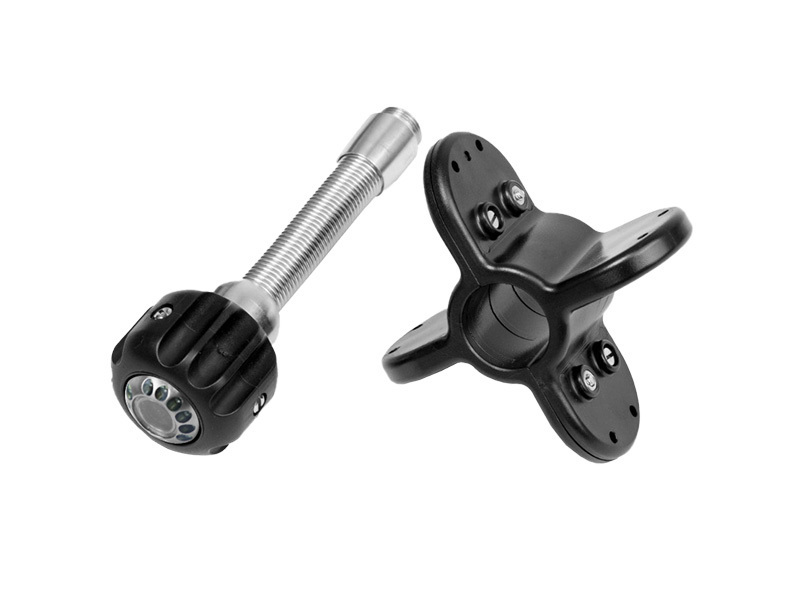

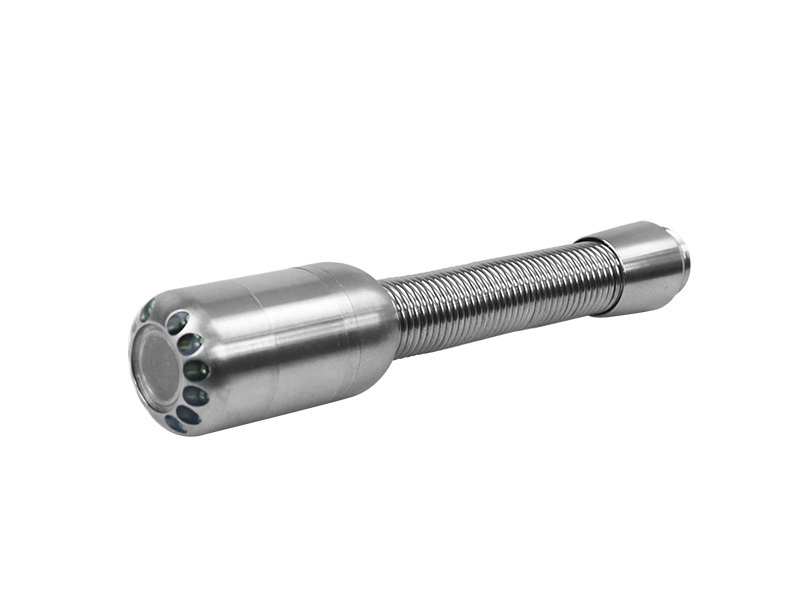

Main Part 1: 23mm camera head

Camera size	Ø23mm x 53mm
Camera pixel	Sensor 1/3″ CMOS, 1.3MP pixel
Waterproof level	Waterproof IP68
Camera range	View range 120°
Light	12pcs high light LED lighting adjustable
Connector	Detachable with pins type connection to Cable Reel
Material	Lens window sapphire glass & stainless steel

______

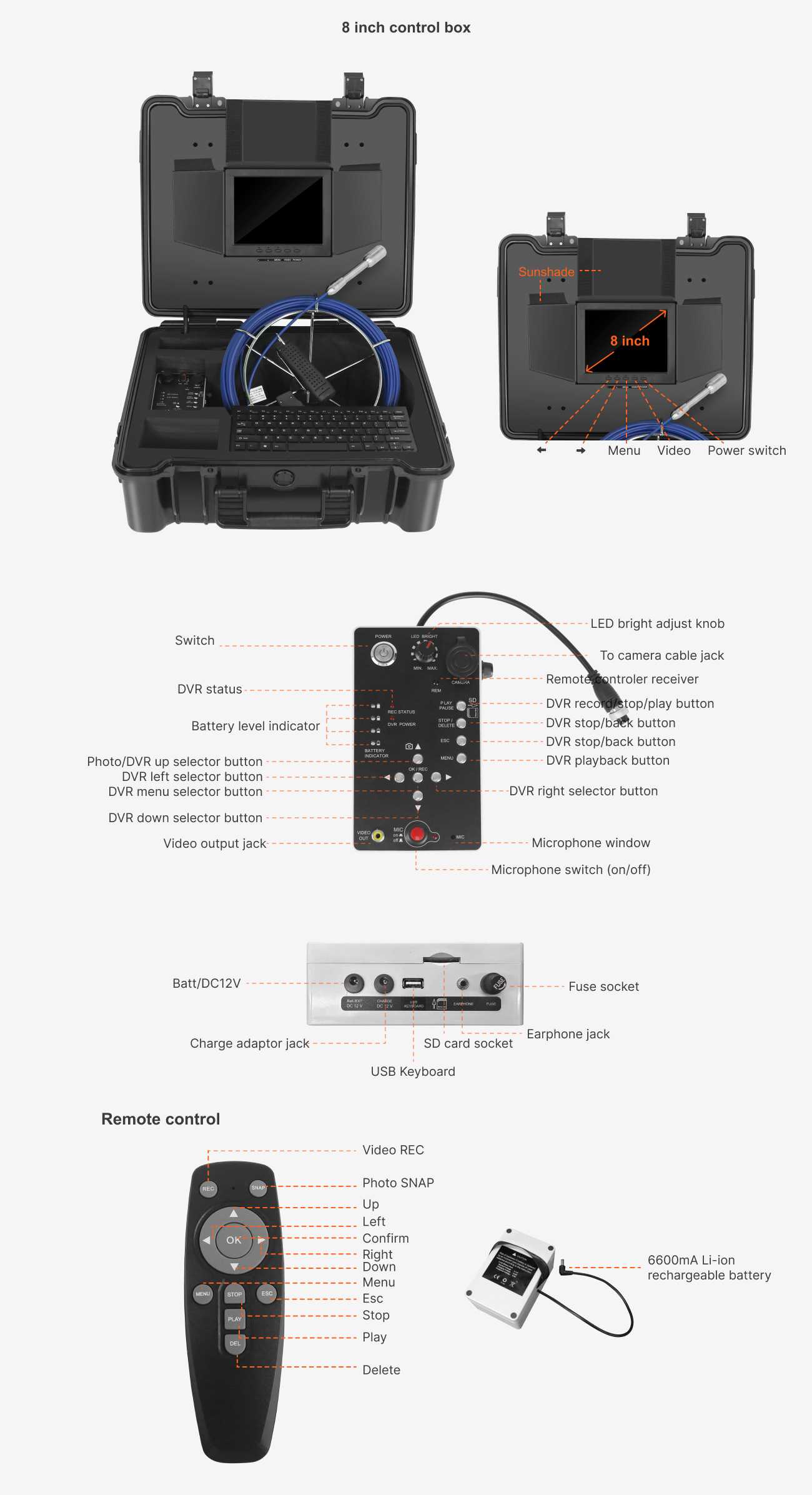

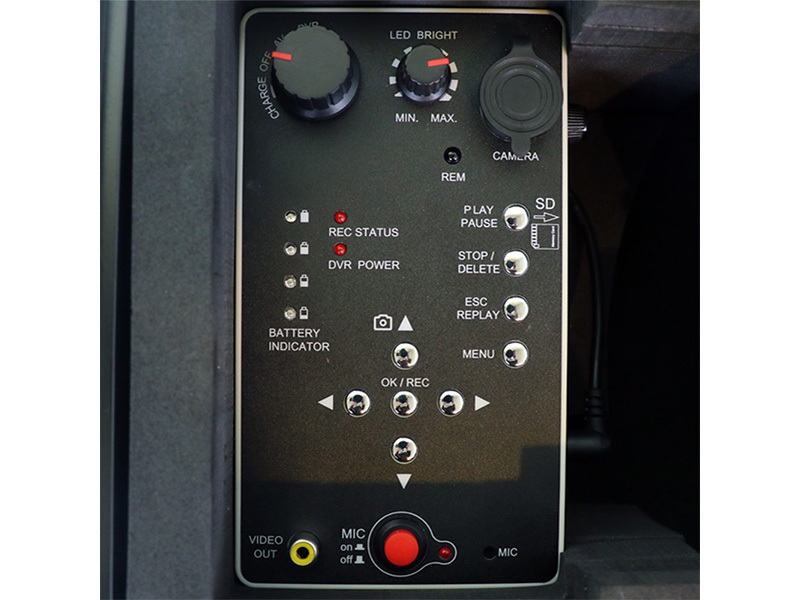

Main Part 2: DVR control unit

Screen Size	8inch TFT LCD monitor
LED	LED brightness adjusting knob
Function	Video, auido and photography function DVR
Keyboard	USB wireless Keyboard real time typewriting
Meter counter	Meter counter function, display on the screen
Battery	6600mA rechargeable Li-ion Battery Pack
	Battery level indicator

______

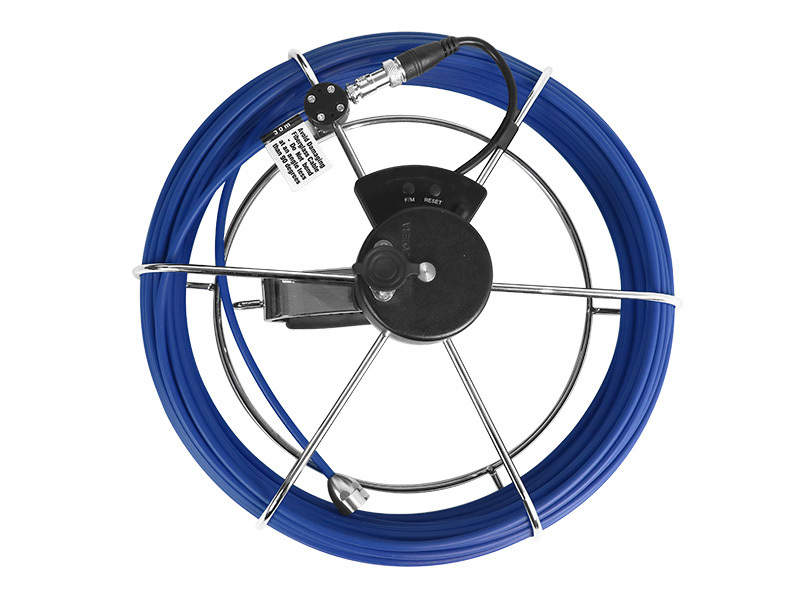

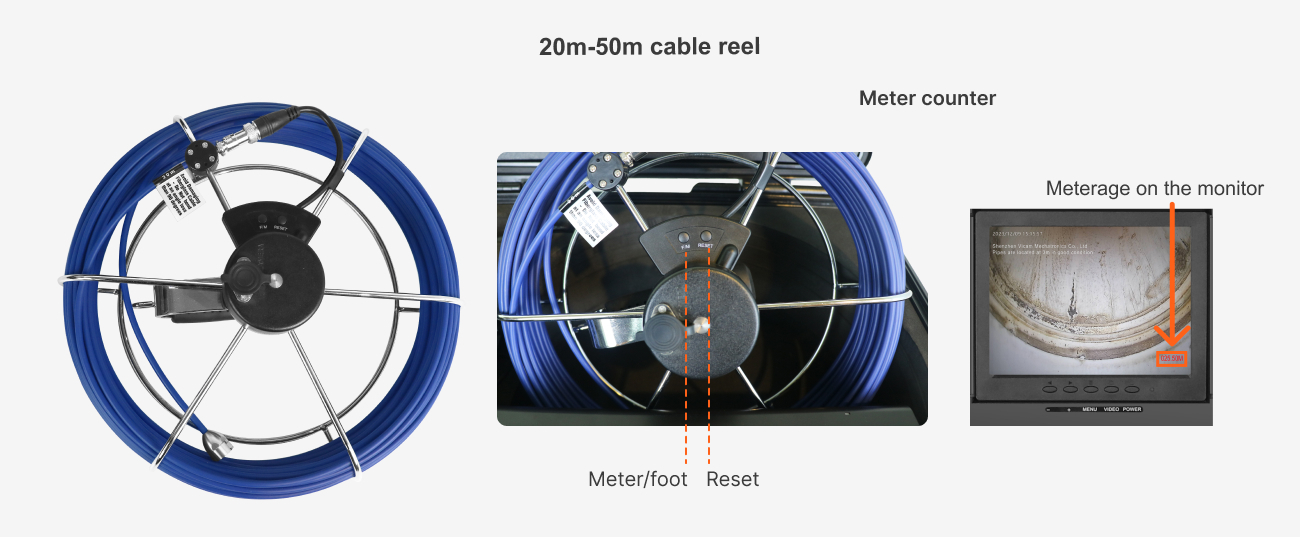

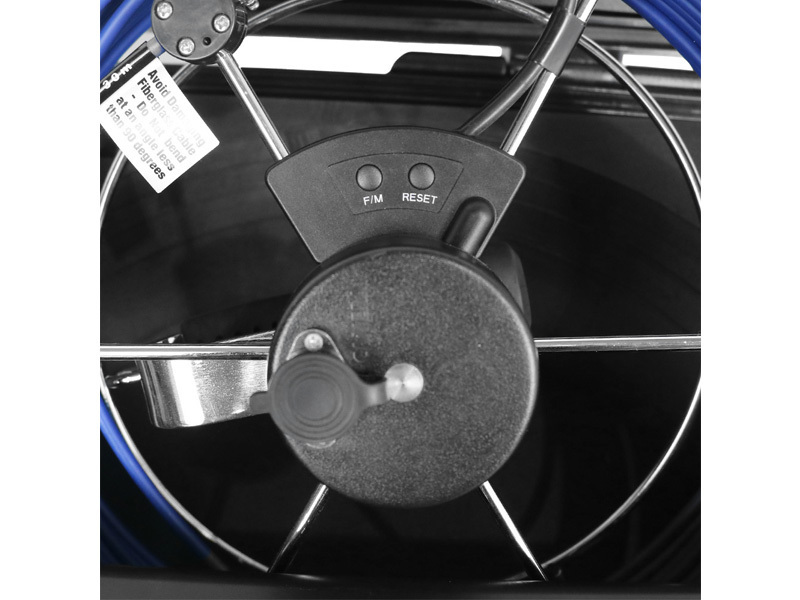

Main Part 3: Cable reel

Meter counter	Meter counter  display on the screen， “feet/meter” switch
Material	Fiberglass push rod cable
Cable diameter	Ø5.2mm
Cable length	20m-50m
Reel size	320 x 110 mm

______

Applications

Detect and identify pipe damage:

  Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline.

  Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.

Underground pipeline detection:

   Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes.

   Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines

---
